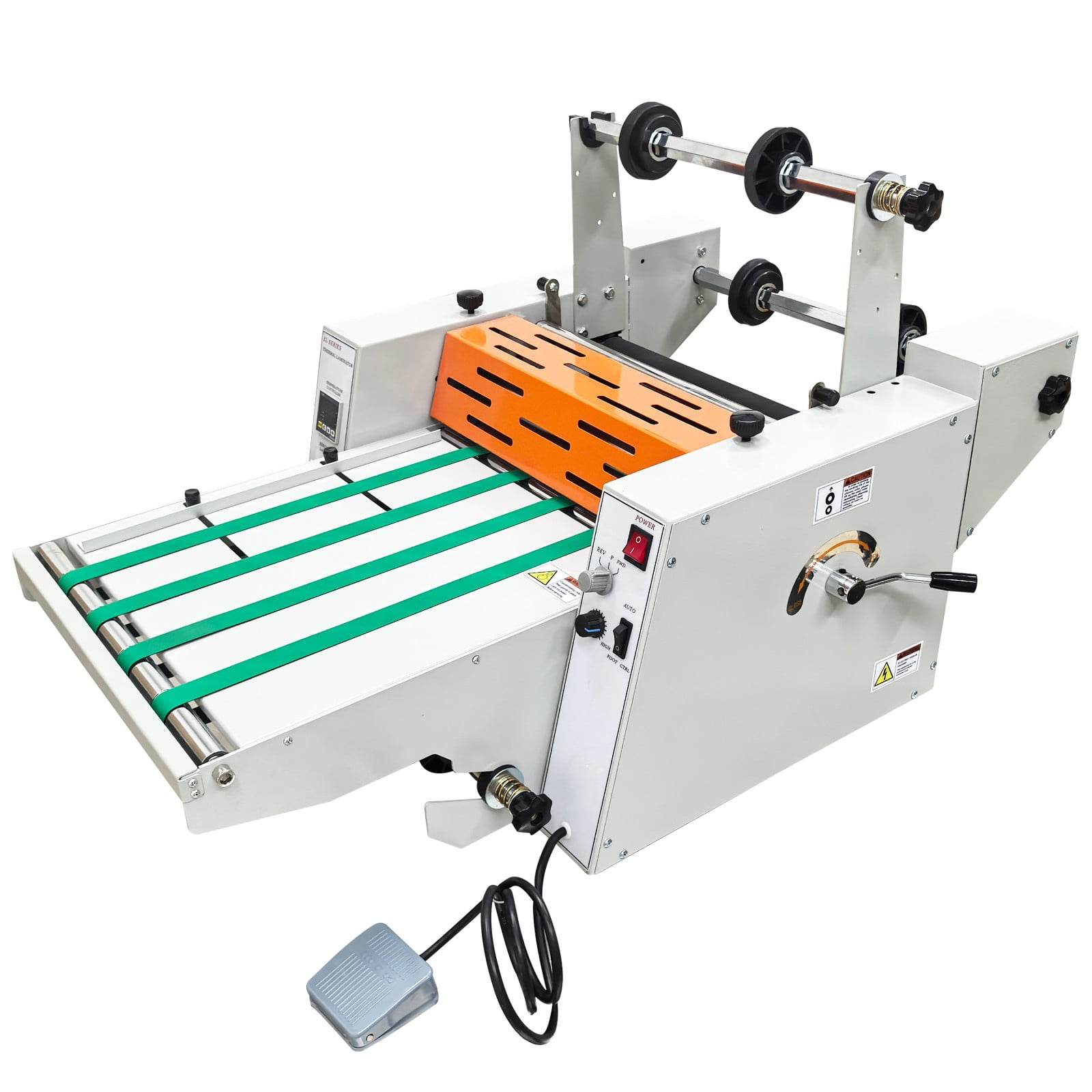

13 Inch Electric Steel Roller Thermal Laminator Single and Double Side Hot Roll Laminating Machine 110V with Conveyor Belt

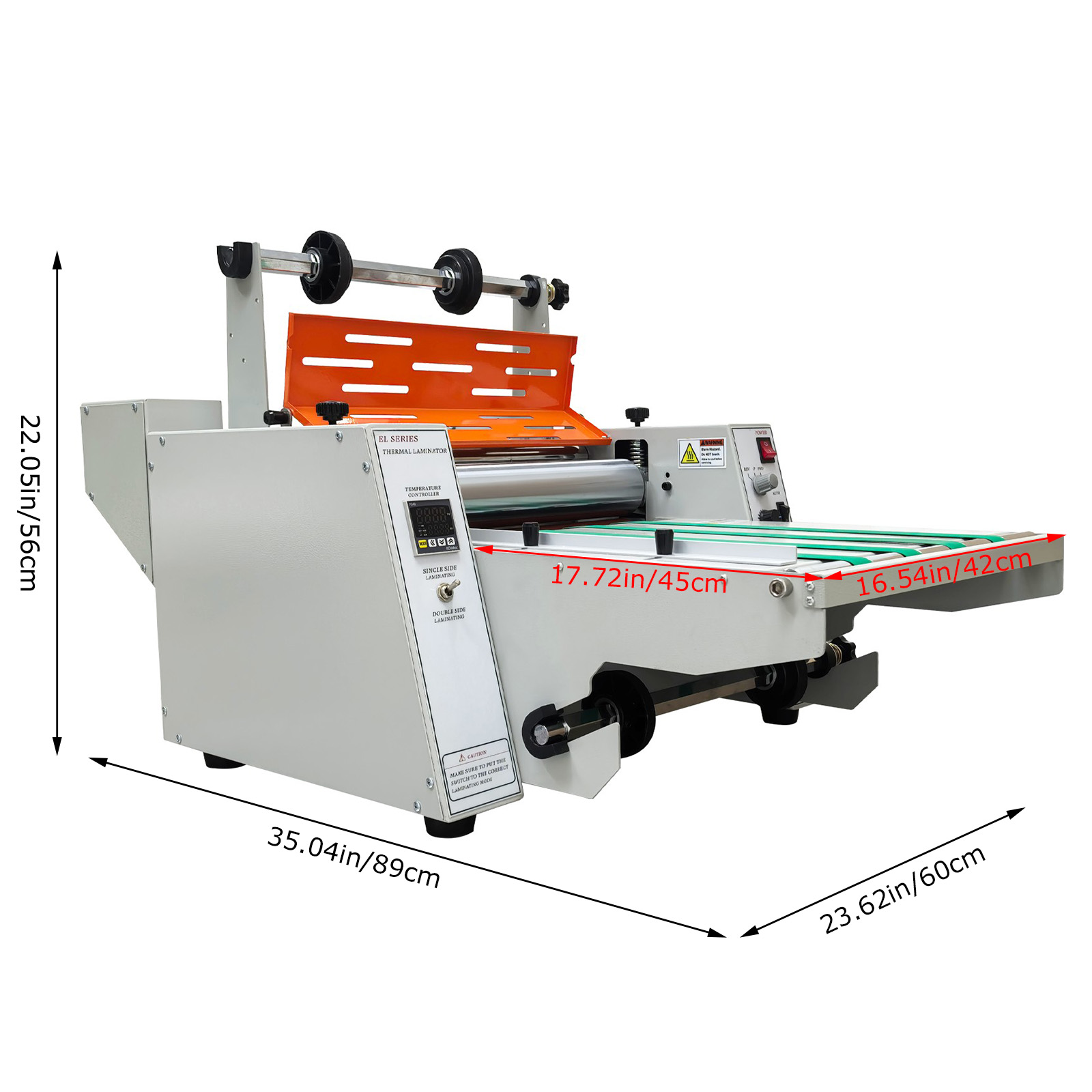

Product Overview <br>The electric steel roller laminator is a special laminating machine for single-sided and double-sided laminating operation and is suitable for the industries of printing, packaging, manufacturing and so on. The laminator adopts the upgraded steel roller structure to ensure the high temperature resistance, high thermal conductivity, high hardness and high durability, and the service life is longer. The laminating machine is additionally equipped with a conveyor belt mechanism and a winding mechanism, making material feeding and discharging collection stable and orderly. The steel roller laminator is an ideal choice for customers with different laminating requirements. <br> <br>Product Parameters <br>Maximum laminating width: 350mm (13.78in) <br>Laminating speed: 5m/min <br>Laminating temperature: 70-130˚C <br>Power supply: AC110V 50/60Hz 18A <br>Heating power: Single side 850W / Double side 1800W <br>Heating mode: Steel roller internal heating <br>Laminating mode: Single-sided or double-sided laminating <br>Operation mode: Automatic mode or foot switch control <br>Paper feeding mode: Conveyor belt <br>Paper discharging mode: Winding collection <br>Product size: 60x89x56cm (23.62x35.04x22.05 inches) <br>Net weight: 52kg (114.64LBS) <br> <br>Attention <br>1. Always handle the laminator with care. Keep hands, long hair, loose clothing and other articles away from the rollers to avoid entanglement. <br>2. The temperature of the heat rollers can reach 130℃. Avoid touching the heat rollers during operation or shortly after power has been removed from the laminator. <br>3. Ensure the local power supply is consistent to the power supply indicated on the nameplate of the product. <br>4. When the machine is not in use, the upper roller should always be lifted and in the ‘Open’ position to prevent the bottom roller from deformation and damage. <br> <br>Attention <br>No quality problem does not support 30 days free return. <br> <br>Item Number (120121): <br>1 x Electric Steel Roller Thermal Laminator 13'' 110V

• ‌The large-sized conveyor belt is adopted to achieve smooth and stable feeding of the materials to be laminated, improving the feeding stability and precision and production efficiency, achieving continuous and automatic feeding and enhancing the applicability and flexibility.
• The laminator is additionally equipped with a finished product winding mechanism which can wind and collect the finished product orderly and neatly.

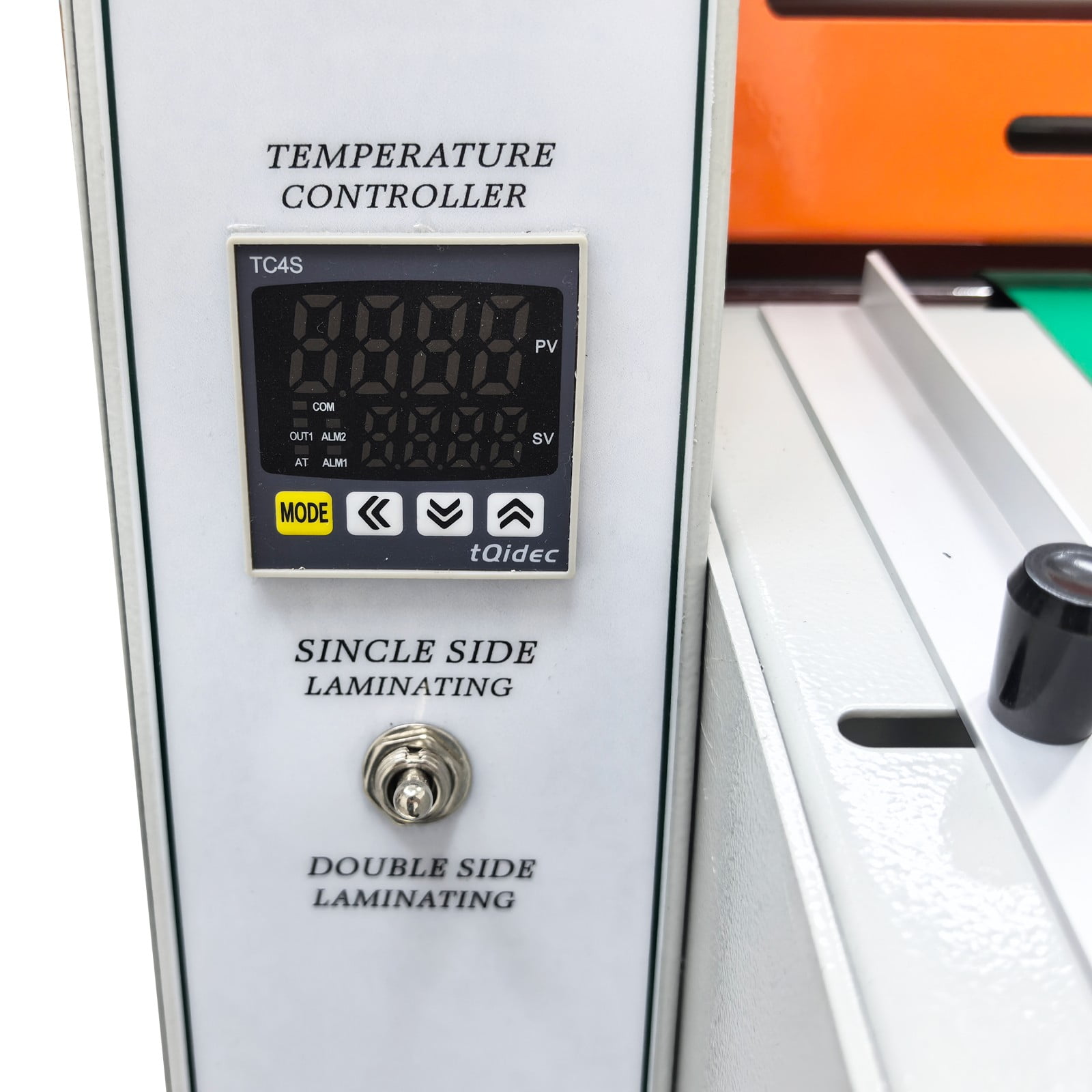

• The temperature controller can achieve accurate control and adjustment of the laminating temperature to meet different laminating requirements. The actual temperature and set value can be clearly displayed through the digital panel.

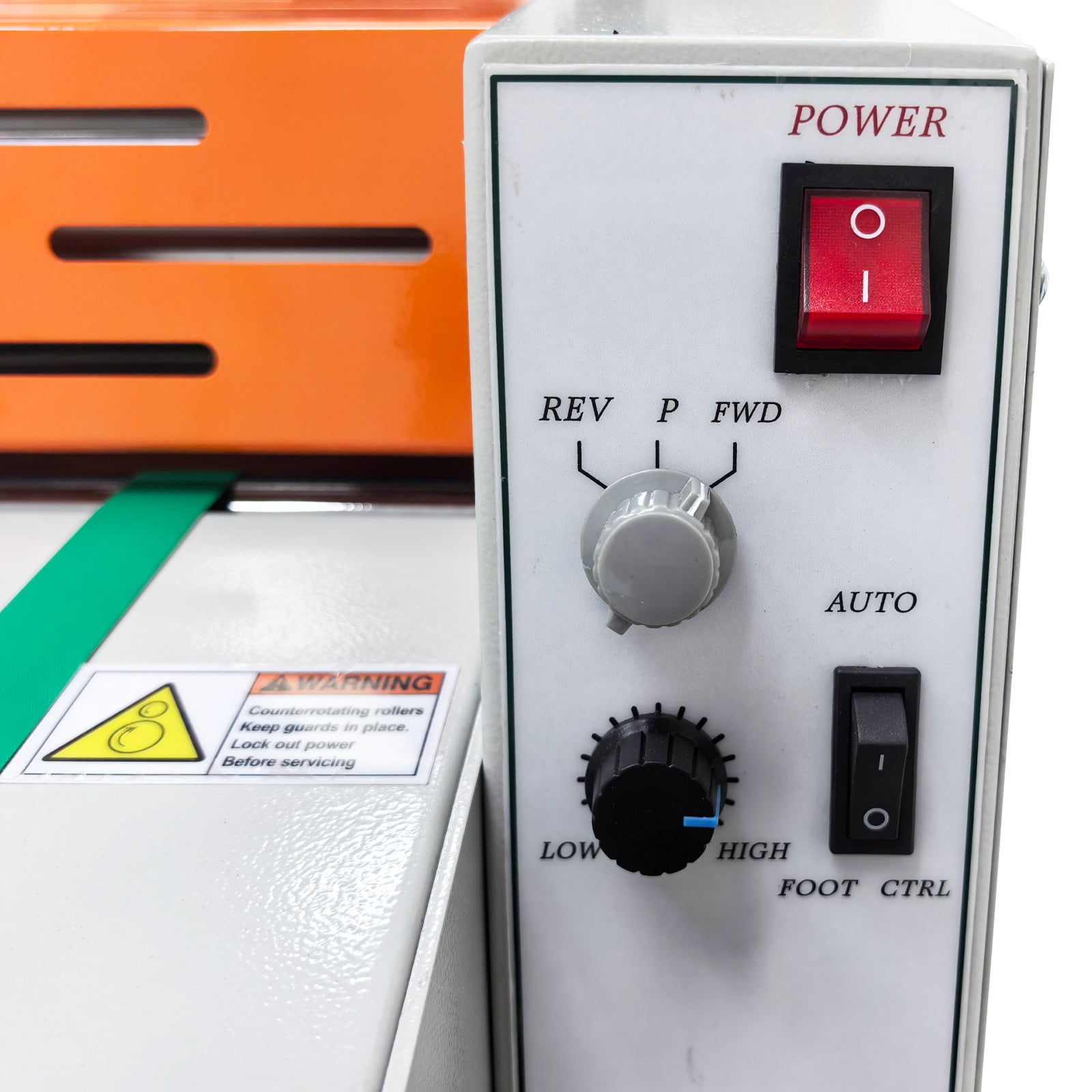

• The laminating speed, automatic/foot pedal control mode and rotating direction can be adjusted and controlled accurately through the corresponding switches, so the laminating operation for different materials is smoothly conducted, and different requirements for speed, mode and direction can be well met.
• The steel roller has the high stability, is resistant to deformation at the high temperature and pressure and can effectively remove the bubbles and wrinkles for the laminated materials.
