Caltric Swing Arm Rebuild Kit with Sprockets Compatible with Honda Sportrax 400 TRX400EX 2X4 1999-2008
Product details
| Management number | 236887477 | Release Date | 2026/07/10 | List Price | US$35.20 | Model Number | 236887477 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

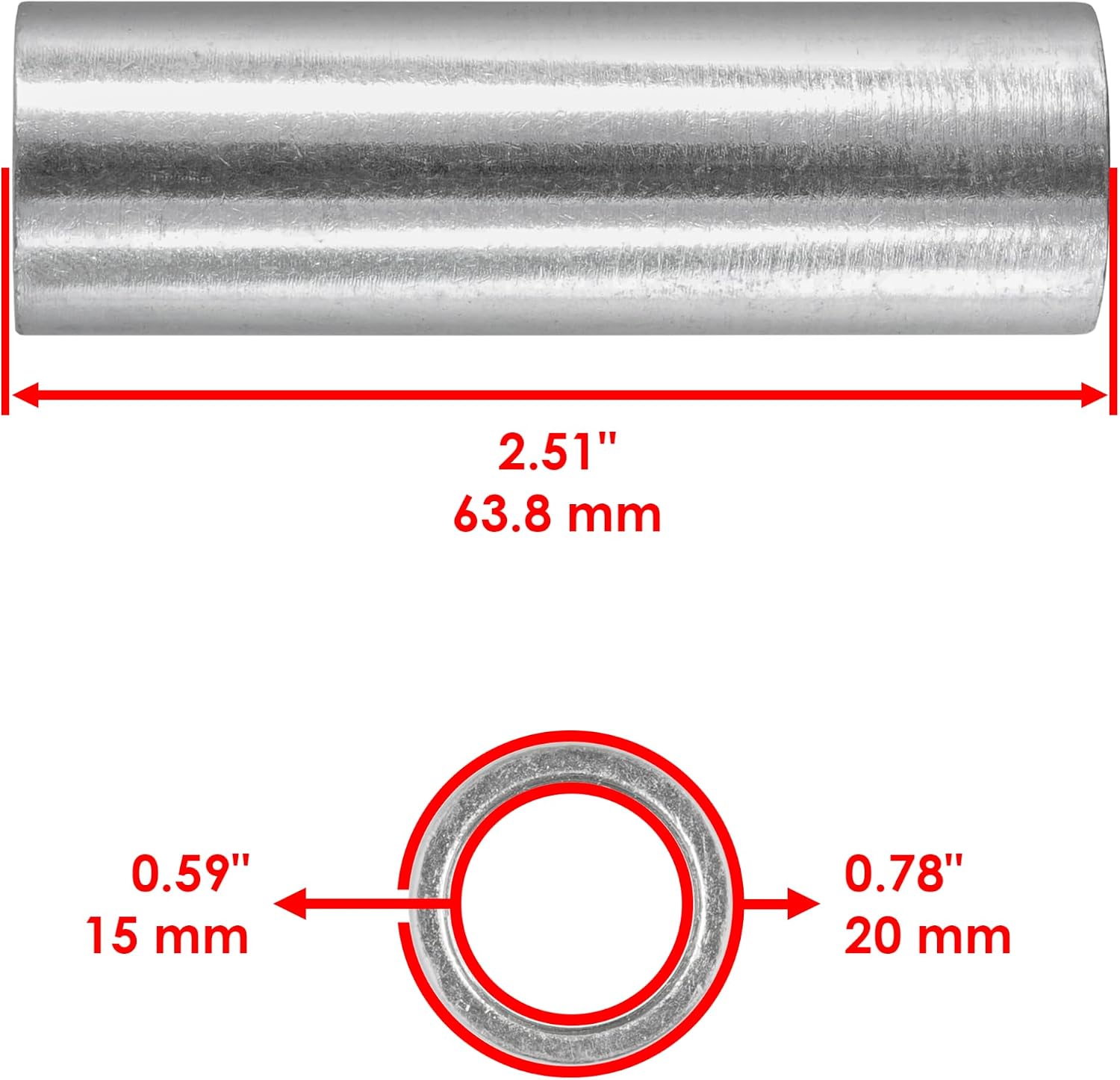

Compatible with Honda models:Sportrax 400 TRX400EX 2X4 1999 - 2008Part Numbers and Specifications:Swing Arm Part Number: Sportrax 400 1999 - 2004 52200-HN1-020 52200-HN1-010Sportrax 400 2005-2007 52200-HN1-A40Sportrax 400 2008 52200-HN1-A70Note: Installs On Location (A) & ( B ) In Second PictureReplaces Honda Part NumbersDust Seal: 91253-KA4-701Collar Swing Arm: 52141-HN1-000 Collar B Swing Arm: 52142-HN1-000Bush Pivot: 52109-KA4-701Bearing Swing Arm: 91071-MA0-003Chain Slider: 52170-HN1-000Rear Sprocket: 41201-HC0-000Front Sprocket | 23801-HN1-000Cap Dust Seal: 52144-KA3-731, 52144-KA4-700, 52144-KA4-701Dimensions & MeasurmentsSwing Arm Pivot Collar Lentgh: 2.51in - 63.8mmSwing Arm Pivot Collar Outer Diameter: 0.78in - 19.9mmSwing Arm Pivot Collar Inner Diameter: 0.59in - 15mmSwing Arm Collar Lentgh: 3.56in - 90.55mmSwing Arm Collar Inner Diameter: 0.59in - 15mmSwing Arm Collar Outer Diameter: 0.78in - 20mmDust Cap Inner Diameter: 0.59in - 15mmDust Cap Outer Diameter: 1.57in - 40mmDust Cap Height: 0.39in - 10mmSeal Inner Diameter: 1.26in - 32mmSeal Outer Diameter: 1.47in |- 37.5mmSeal Height: 0.31in - 8.0mmSmall Sprocket Tooth: 15Big Sprocket Tooth: 38 Sprocket Pitch: 520Needle Bearing Height: 1.17in - 29.80mmNeedle Bearing Outer Diameter: 1.02in - 26mmChain Slider Length: 5.75in - 146mmChain Slider Width: 1.31in - 33mmNote : The chain comes in standard 120 Links1. O-Ring Drive Chain with Master Link (Tensile Strength of 8200 pounds)O-Ring Style means it will last longer with less maintenance than conventional chain.2. Front Sprocket 15 Teeth / Material: Steel3. Rear Sprocket 38 Teeth / Material: C49 High Carbon Steel
- Compatible with Honda models: Sportrax 400 TRX400EX 2X4 1999-2008
- Note: Installs On Location (A) & ( B ) In Second Picture
- Order Includes: 2 x Dust Seal, 1 x Collar Swing Arm, 1 x Collar B Swing Arm, 2 x Bush Pivot, 2 x Bearing Swing Arm, 1 x Chain Slider, 1 x Rear Sprocket, 1 x Front Sprocket, 1 x Chain, 2 x Cap Dust Seal
- Chain Note: The chain comes in standard 120 Links; 1. O-Ring Drive Chain with Master Link (Tensile Strength of 8200 pounds); O-Ring Style means it will last longer with less maintenance than conventional chain.2. Front Sprocket 15 Teeth / Material: Steel; 3. Rear Sprocket 38 Teeth / Material: C49 High Carbon Steel
- Fitment Verification: Please review the description and images to ensure correct fit
| ASIN | B0H6FX6JTY |
|---|---|
| Brand | Caltric |
| Item Weight | 7.2 pounds |
| Manufacturer | Caltric |
| Product Dimensions | 1 x 1 x 1 inches |
| Manufacturer Part Number | YY188/1 |
