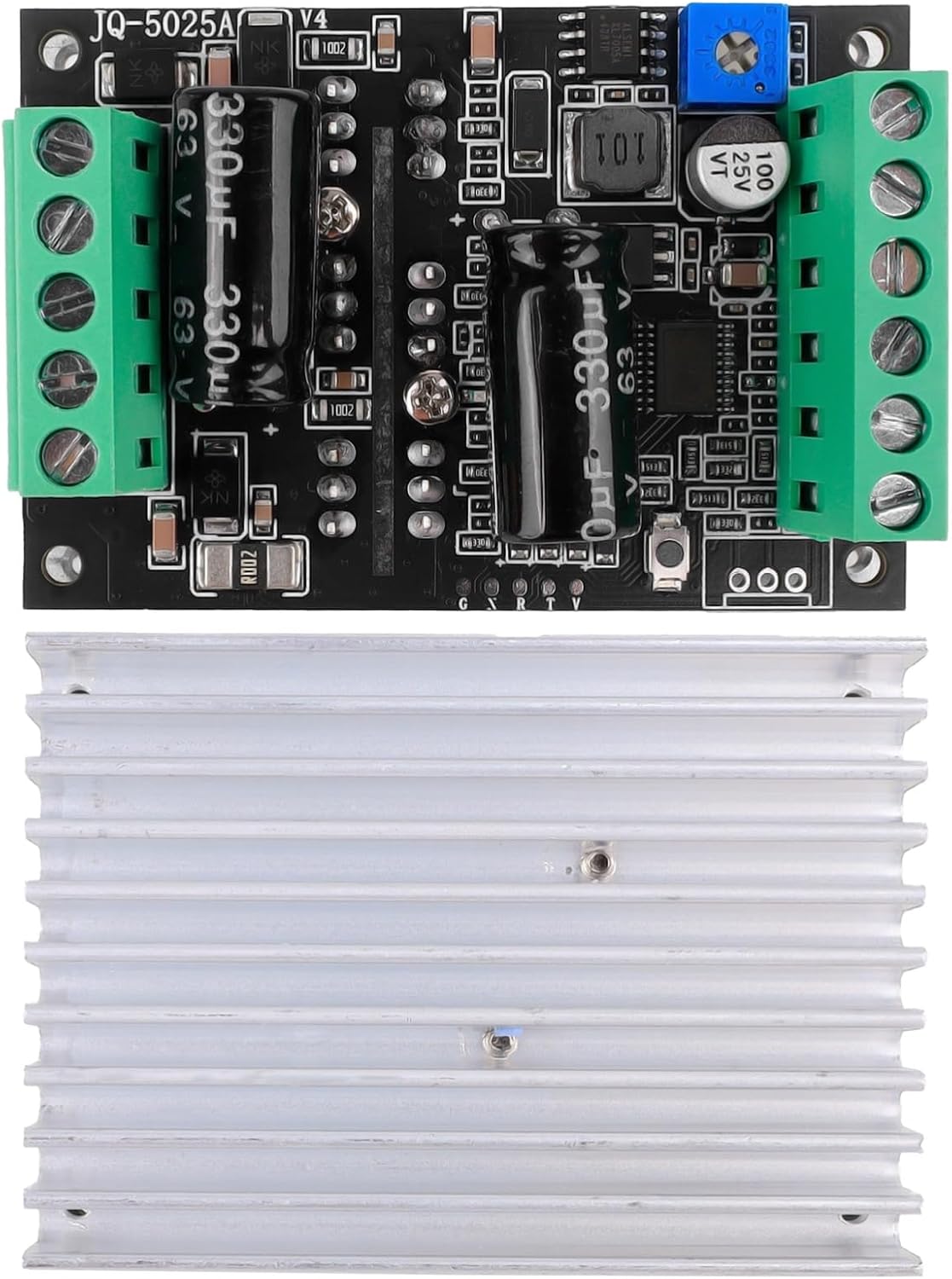

DC 6- 60V 20A 500W BLDC Three-Phase Brushless Motor Controller PWM Hall Motor Control Driver Board 12V 24V 48V with Forward/ Reverse/ Stop/ Brake Function
US$6.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by blog.charterlinkz.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$6.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by blog.charterlinkz.com
Free 30-day returns Details
Product details
| Management number | 247179202 | Release Date | 2026/08/16 | List Price | US$6.80 | Model Number | 247179202 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DC three-phase brushless controller: The Driver requires the motor to have a Hall sensor to work properly. This driver is only suitable for DC brushless motors with a Hall sensor of 120 degrees. It supports PLC 0-5V analog control and PWM control amplitude of 2.5-5V. Parameters: Working voltage: 6-60V (limit 60V with margin for use); Working current: rated 16A, peak 20A; Power: rated 200-300W peak 500W (with margin for enhanced heat dissipation when using high power); Overcurrent protection: Yes
- Connection: There are 5 Hall interfaces on the brushless motor, two of which are Hall power supply lines and three are Hall signal lines. You should distinguish them, especially the Hall power supply line. Don't make a mistake. The Hall signal line is usually marked with a (Ha), b (Hb), and c (Hc). There are also three interfaces on the driver board with the words Ha, Hb, and Hc. Connect them accordingly
- Instruction: There are three phase wire interfaces on the driver board. They are marked with MA (U), MB (V), MC (W) and other similar characters. They are also connected accordingly. After confirmation, the main power supply is turned on, and the throttle of the potentiometer is turned about 20%, and it can rotate smoothly normally
- Note: Since the power current of the module is very large, please do not artificially short-circuit when the module is not working properly. Please use a small current and voltage test for the first wiring test. After it is OK, then pass a large current and high voltage. Since it is a bare board module for sale, pay attention to the insulation of the wiring wire heads. It is strictly forbidden to touch the parts on the board with strong voltage
- Note: There is no fuse in the power supply circuit on the mainboard. It is recommended to add one yourself. Reverse connection of the positive and negative poles of the power supply will cause permanent damage to some chips on the board. Do not connect a motor that is obviously inconsistent with the voltage and power of the drive module to avoid damage
| ASIN | B0F6L6YXHK |
|---|---|
| Color | 1PC-500W BLDC Controller |
| Model | L001437 |
| Brand Name | YELUFT |
| Unit Count | 1 Count |
| Part Number | BLDC-500W |
| Display Type | Text-based |
| Manufacturer | YELUFT |
| Number of Items | 1 |
| Number of Packs | 1 |
| Included Components | PWM DC Motor Speed Controller |
| Operating Temperature | 120 °C |
