Handheld Oscilloscope DS213, Portable Oscilloscope Mini Size Handheld, Built-in Rechargeable Battery, 4 Channels, 15Mhz Bandwidth, Entry Level Oscilloscope for Beginner
Product details
| Management number | 237868587 | Release Date | 2026/07/11 | List Price | US$68.00 | Model Number | 237868587 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DS213 is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core. It uses FPGA to manage external ADC’s control and data cache mode; provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has built-in 8MB USB flash drive for storing waveforms and upgrading system firmware.

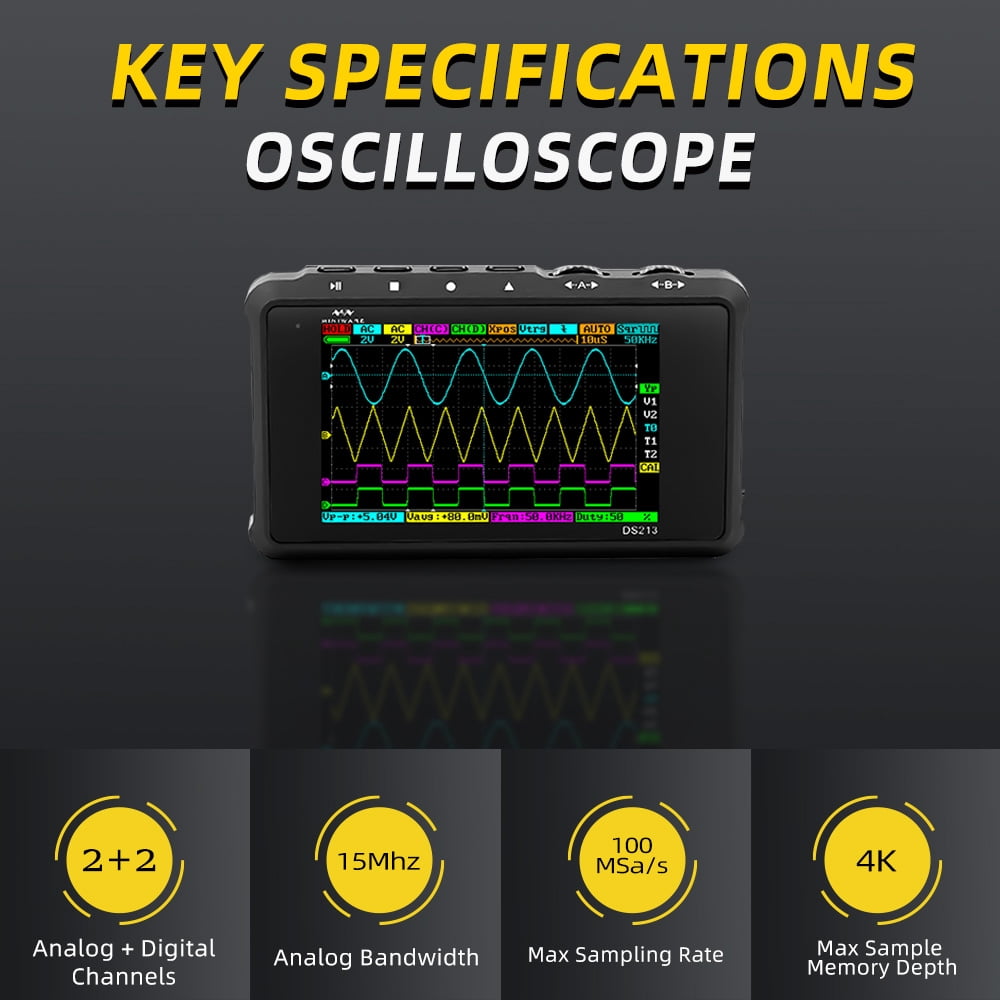

- 【KEY SPECIFICATIONS】2 analog channels + 2 digitalchannels;15Mhz bandwitch;100MSa/s sampling rate and 4K sampling depth.

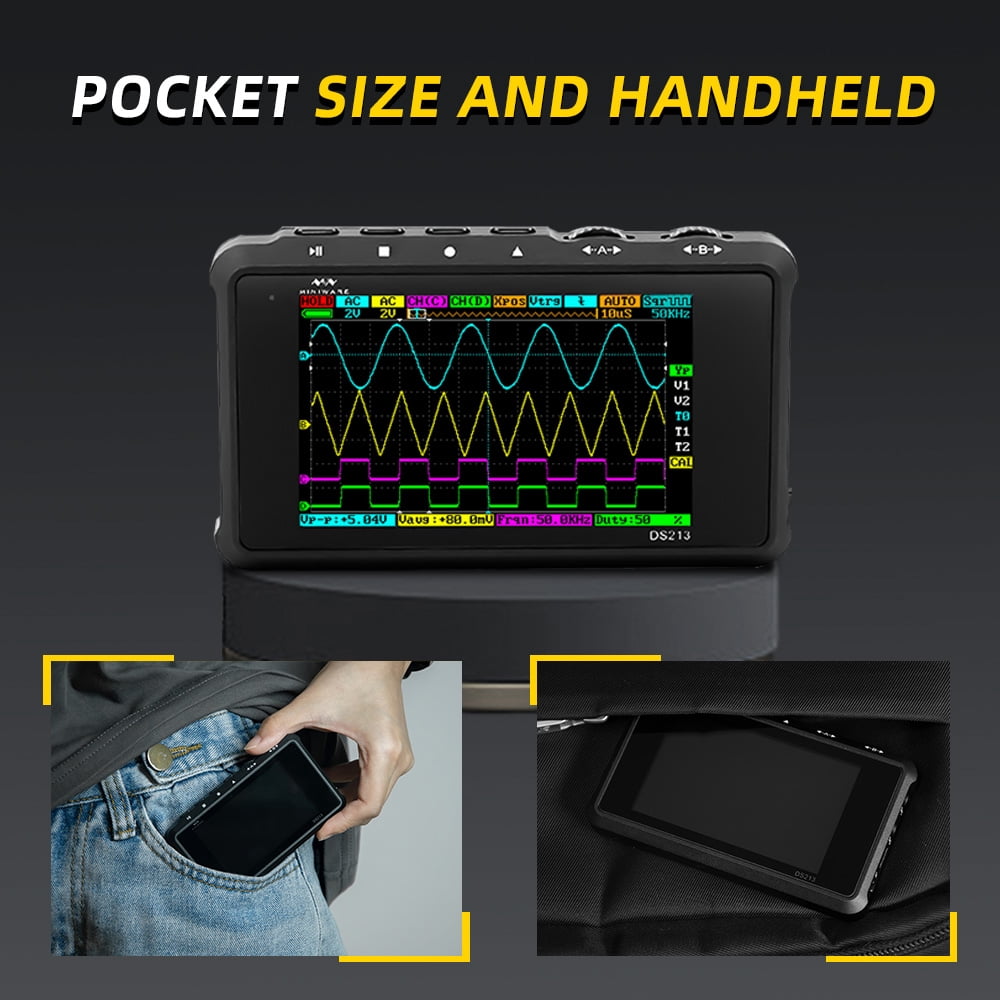

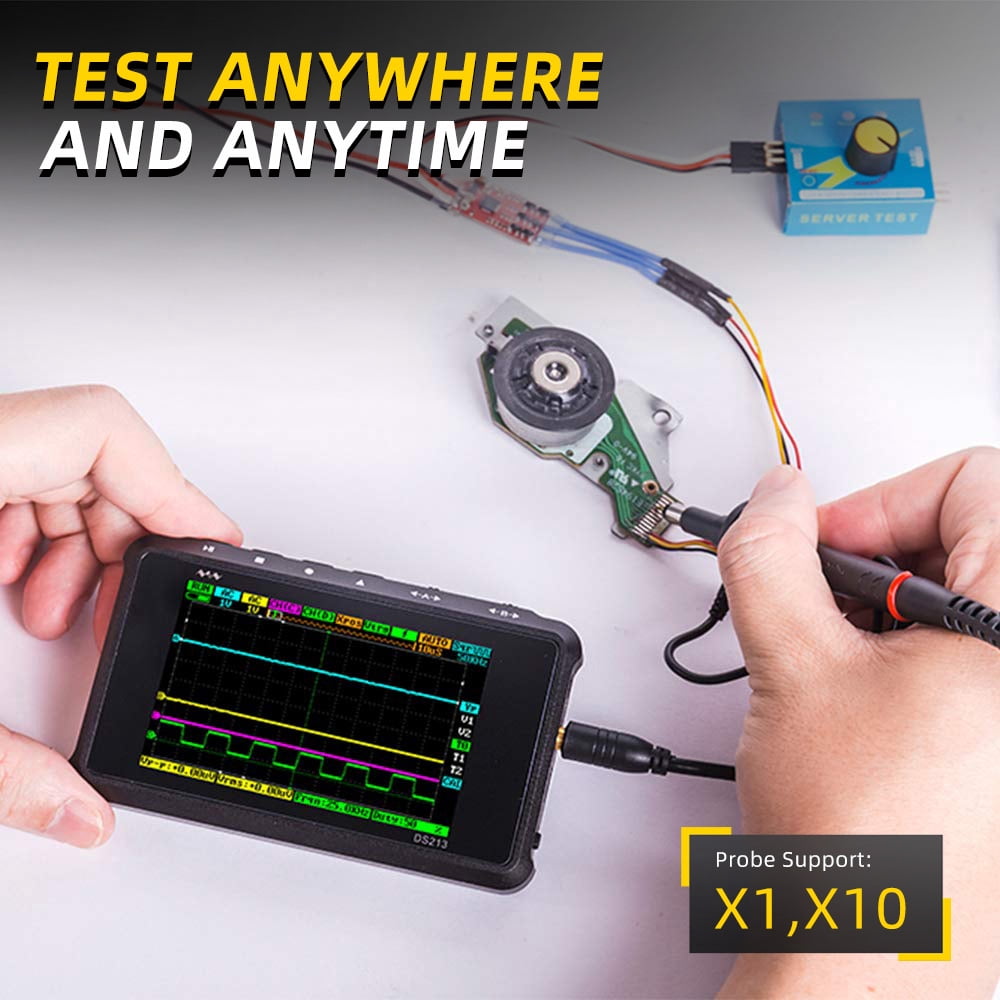

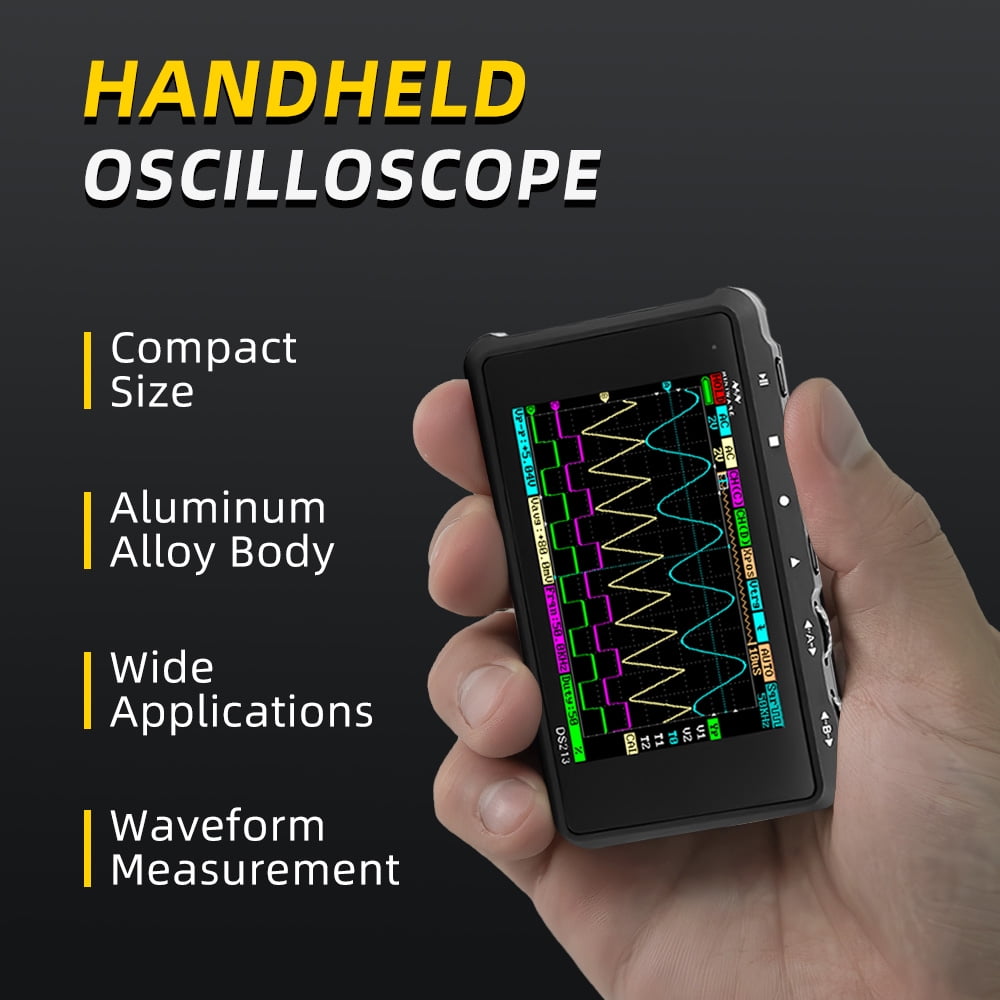

- 【PORTABLE】Ideal for beginner of electronic hobbyist with its small and compact size that could be carried in the pocket, allowing you to achieve every detailed measurement anywhere and anytime.
- 【SCREEN AND BATTERY】Integrated with 3 inch, 320x240 colorful display screen and 1000mAh lithium rechargeable battery.
- 【DATA STORAGE】Build in 8 MB storage memory and can export waveform data to computer with micro USB port.

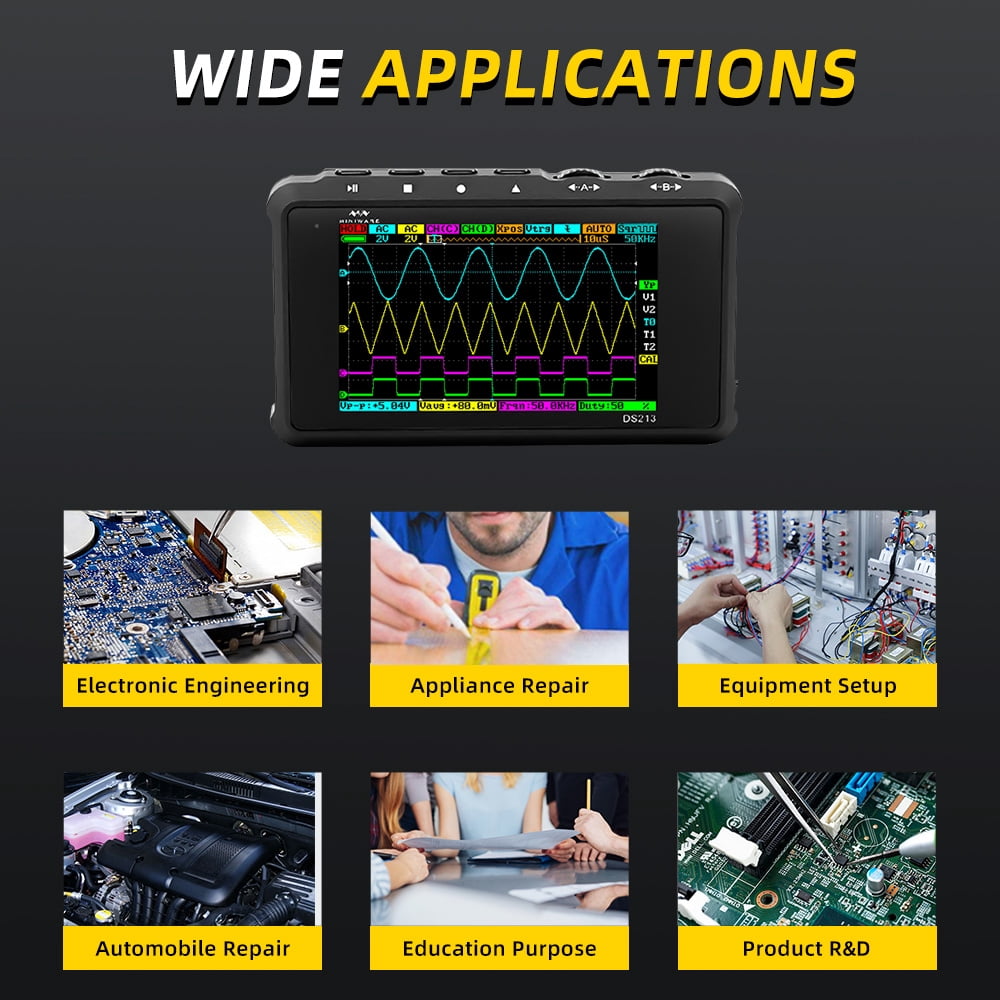

- 【COMPATIBILITY】Widely applicable in academic experiment, electronics repair, electronic engineering etc.
- WARNING: PLEASE DO NOT CHARGE THE OSCILLOSCOPE DURING MEASUREMENT !!!
| Bandwidth | 15Mhz |
|---|---|
| Sample rate | 100000 Hz |
| Channels | 4 |
| Oscilloscope type | Handheld Oscilloscopes |
| Resolution | 320x240 |
| Screen size | 3 in |
| Features | Compact, Precision, Portable, Lightweight, Handheld, Digital |
| Power type | Battery |
| Display | TFT LCD |
| Brand | CCDSO |

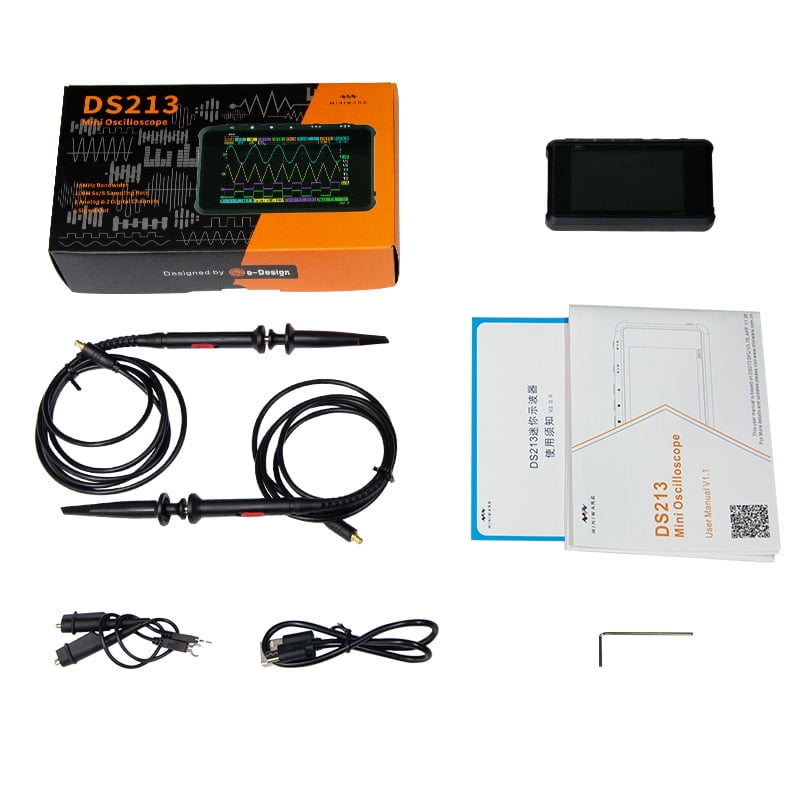

| Accessories | DS213 oscilloscope, Test probe, USB cable, User manual |
| Dimensions | 1.00 x 10.00 x 5.00 cm |
| Weight | 3 oz |
| Has written warranty | No |
| Model | DS213 |
| Series | DS213 |
| Rec. use | School, Residential, Professional, Laboratory, Automobile Repair, General |
