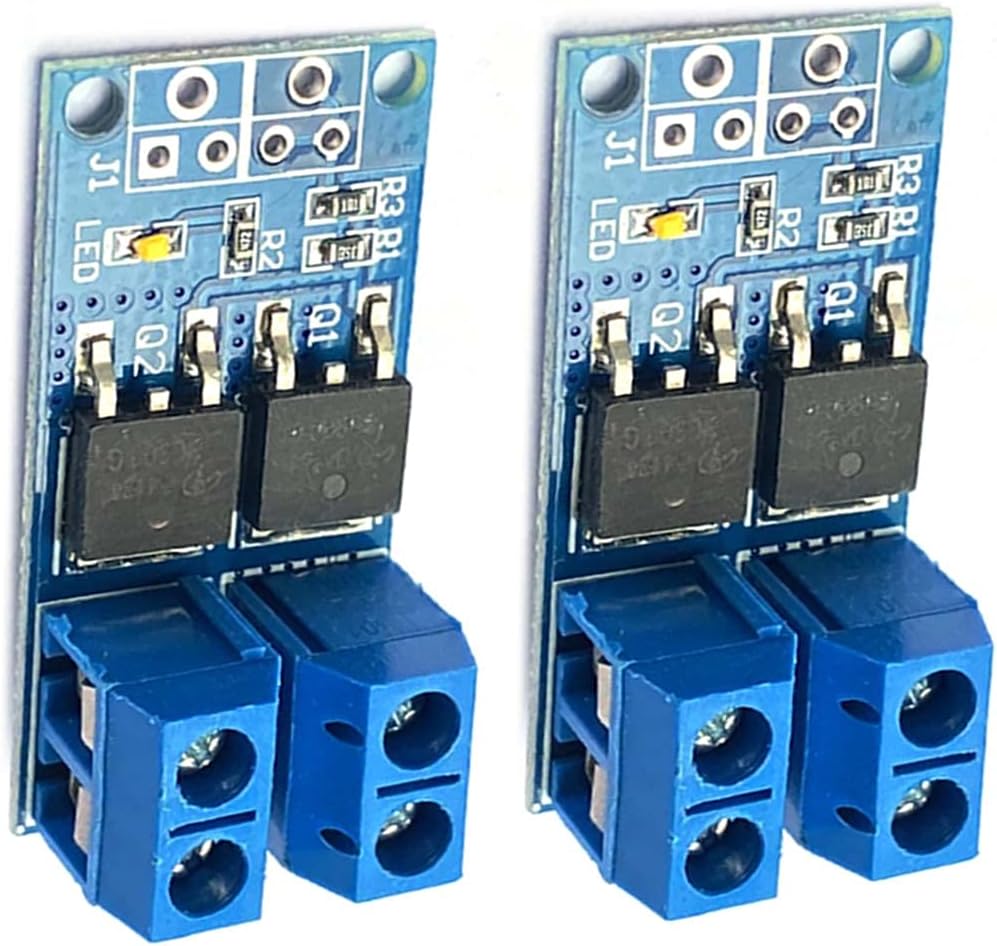

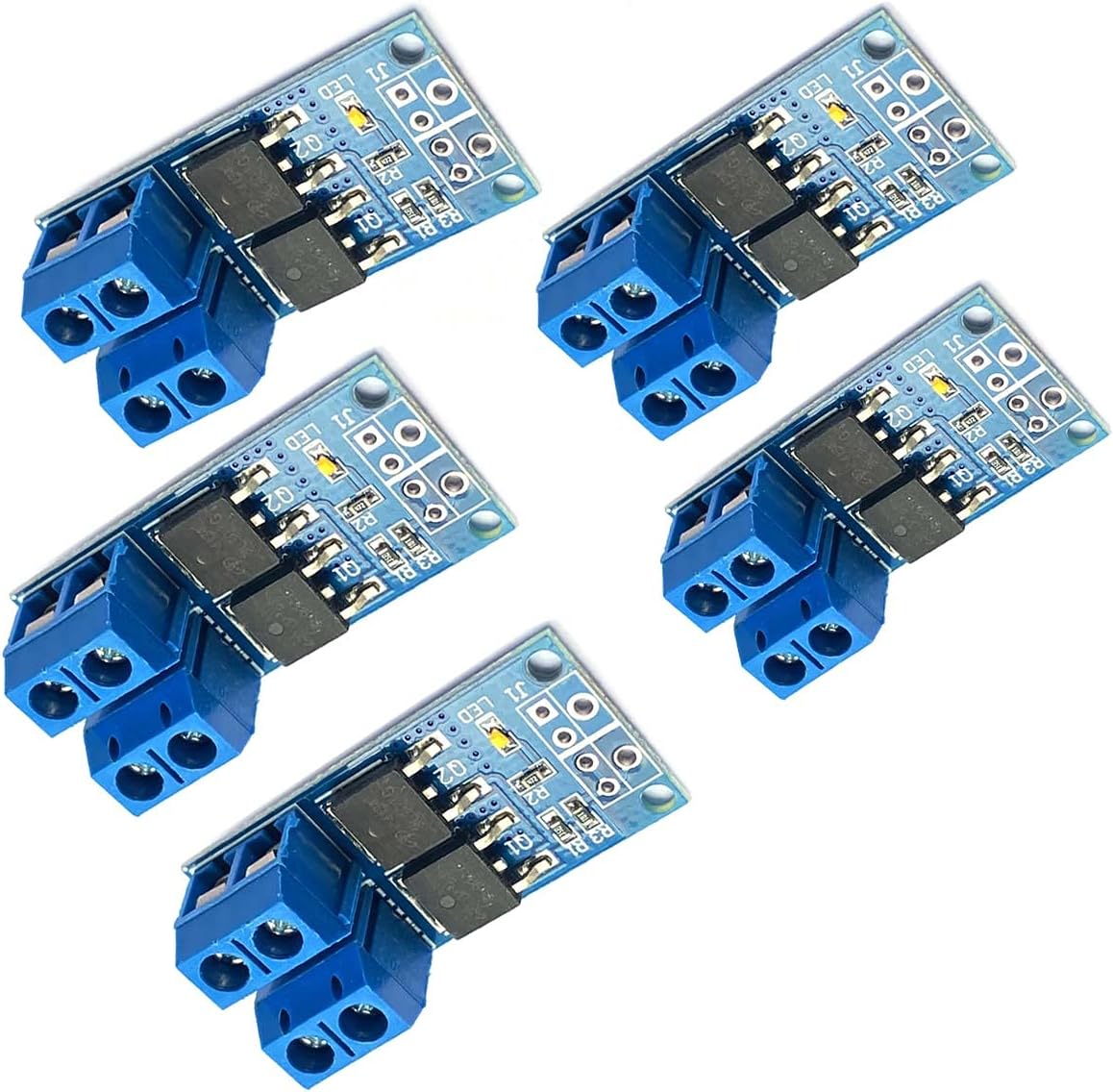

Kiro&Seeu 5PCS DC 5V-36V 15A(Max 30A) 400W Dual High-Power MOSFET Trigger Switch Drive Module 0-20KHz PWM Adjustment Electronic Switch Control Board Motor Speed Control Lamp Brightness Control

Style:FET 1The board is of high power MOS trigger switch driver module and control board with field-effect tube to adjust the electronic switch. It adopts double MOS parallel active output to show lower internal resistance,greater electric current and power. Besides it works at 15A,400W under common temperature which satisfies most devices usage and realizes the control of great power devices in a relaxed way. What’s more, it can be applied to powerful devices which could be controlled by output terminal like electric motors and light bulbs to control the speed of motor and the light of bulbs.Certainly,you can apply it to devices which could input PWM for control like LED light belt,DC motor,Micro pump and solenoid valves. Technical Specifications: Operating Voltage: DC 5V - 36V The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support Output capacity: DC 5V - 36V, at room temperature, continuous current 15A, power 400W, Enhance cooling conditions, the maximum current up to 30A Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., can input PWM, control motor speed, lamp brightness and so on Operating temperature: -40-85 ℃ Dimension: 34mm x 17mm x 12mm/ 1.34×0.67×0.47 inch(L × W × H) Package includes: 5 X MOS FET Trigger Switch Drive Module

• Operating Voltage: DC 5V - 36V; The trigger source: digital high-low (DC3.3V - 20V); continuous current: 15A, enhance cooling conditions, the maximum current up to 30A; power: 400W.
• High Reliability, High Availability: It adopts double MOS parallel active output to show lower internal resistance,greater electric current and power. Besides it works at 15A,400W under common temperature which satisfies most devices usage and realizes the control of great power devices in a relaxed way.
• Supporting Multiple Signal Source Triggers: Can be connected microcontroller IO port, PLC interfaces, DC power, etc.
• PERFECT SUPPORT PWM: You can access the PWM signal, the signal frequency 0--20KHZ perfect support.
• WIDELY APPLICATIONS:You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., can input PWM, control motor speed, lamp brightness and so on.
