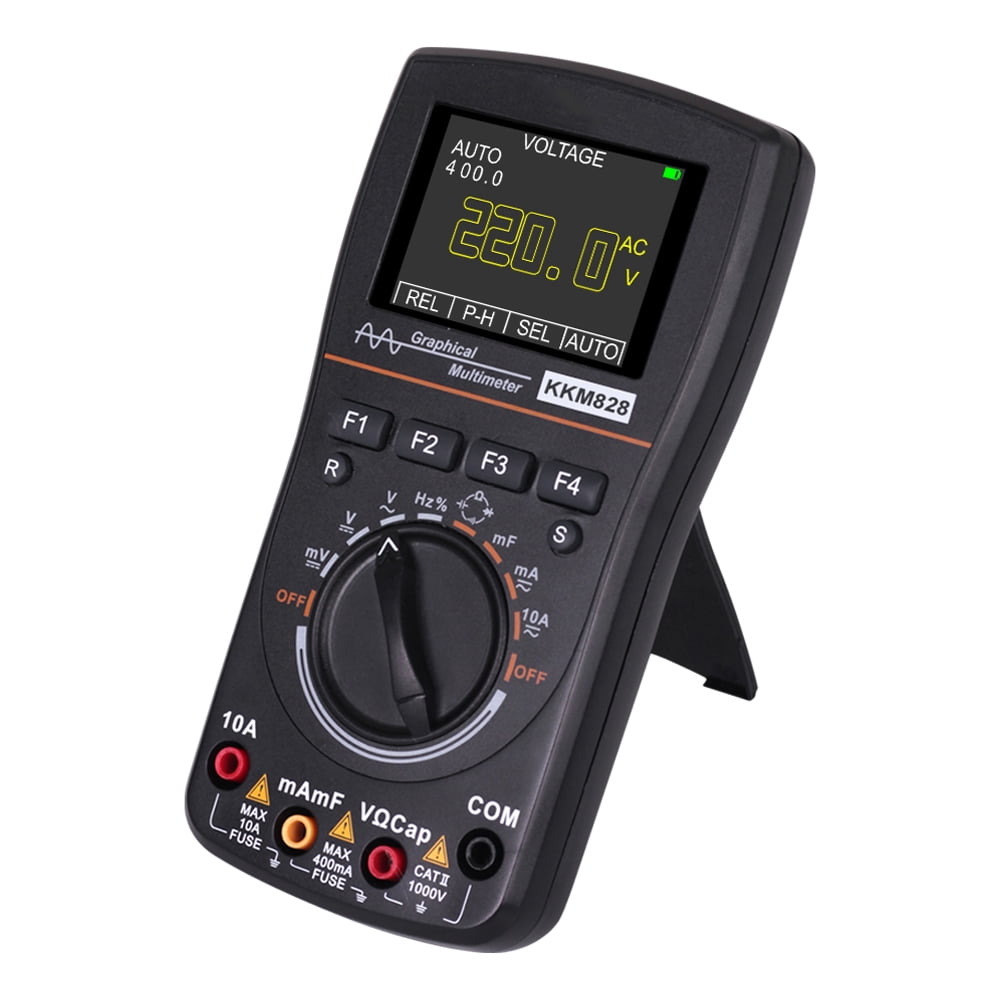

KKmoon kkm828 High Definition Intelligent Graphical Digital Oscilloscope Multimeter 2 in 1 with 2.4 Inches Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate for DIY and Electronic Test

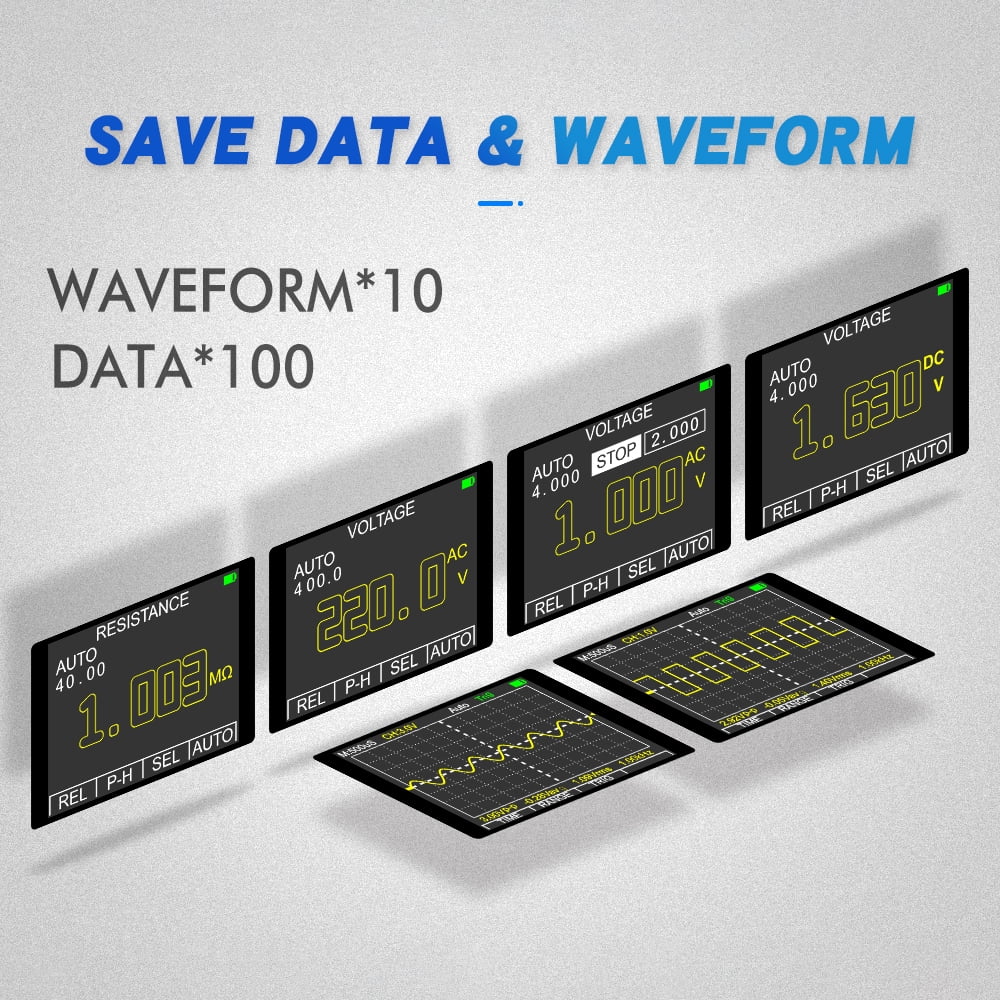

Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.<br> <br> <b>Features:</b><br> Oscilloscope multimeter 2 in 1, improve your work efficiency.<br> One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display.<br> 240*320 high definition color screen: the color display is clearer, and the secondary display at the bottom provides more function menus.<br> Multimeter measurement functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.<br> Storage: mass storage, 100 data/10 waveforms.<br> Triple safety: double insurance tube, 500mA/250V, 10A/250V. Input voltage is greater than 24V, beep warning once. Input over range, beep warning.<br> Same screen display: historical records and real-time data are displayed on the same screen for easy comparison and analysis of data.<br> Buttons and dial: silicone button, sensitive pressing function dial, accurate gear.<br> Back bracket: the back bracket is tilted at 60° for easy viewing.<br> &lt;video height="100%" width="100%" poster="https://i.goopics.net/o8zqjq.jpg"&gt; &nbsp; &nbsp;&lt;source type="video/mp4" src="https://i.goopics.net/o8zqjq.jpg"&gt; &nbsp;&lt;/video&gt;<br> <b>Specifications:</b><br> Material: ABS<br> Color: black<br> Display: 320*240 LCM<br> Display area: about 2.4 inches<br> Backlit: white<br> Input resistance: 10MΩ<br> Battery: 3 * AA battery (not included)<br> Power consumption: about 80mA<br> Use time: low light about 5 hours<br> Storage: 100 data/10 waveforms<br> Use environment: 0~40℃, ＜75%RH<br> Storage environment: -10~60℃, ＜90%RH<br> Bandwidth: ACV/1MHz ACA/5KHz<br> Max. real-time sampling rate: 2.5Msps<br> Multimeter measurement: automatic range + manual range<br> Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude<br> Measurement mode: normal, automatic<br> Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in<br> Item weight: 195g / 6.9ounce<br> Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in<br> Package weight: 370g / 13.1ounce<br> &lt;video height="100%" width="100%" poster="https://i.goopics.net/puoj9h.jpg"&gt; &nbsp; &nbsp;&lt;source type="video/mp4" src="https://i.goopics.net/puoj9h.jpg"&gt; &nbsp;&lt;/video&gt;<br> <b>Multimeter specification:</b><br> DC voltage:<br> Range: 400mV/4V/40V/400V/1000V<br> Uncertainty: 0.75% rdg+10dgt<br> AC voltage:<br> Range: 400mV/4V/40V/400V/750V<br> Uncertainty: 1.0% rdg+10dgt<br> DC current:<br> Range: 40mA/400mA/4A/10A<br> Uncertainty: 1.2% rdg+10dgt<br> AC current:<br> Range: 40mA/400mA/4A/10A<br> Uncertainty: 1.5% rdg+10dgt<br> Resistance:<br> Range: 400.0Ω~40.00MΩ<br> Uncertainty: 1.0% rdg+5dgt<br> Capacitance:<br> Range: 0.1nF~100, 10.00mF<br> Uncertainty: 2.0% rdg+10dgt<br> Frequency:<br> Range: 5Hz~10MHz<br> Uncertainty: 1.0% rdg+5dgt<br> Duty cycle:<br> Range: 0.1%~99.9%<br> Uncertainty: 1.0% rdg+5dgt<br> Diode test: voltage is about 5V, test current is about 1.5mA<br> Continuity test: judgment resistance about:&lt;50Ω beep<br> Fuse specifications: 500mA/250V, 10A/250V<br> <br> <b>Packing List:</b><br> 1 * Graphical Multimeter<br> 1 * Pair of Test Pens<br> 1 * Protective Bag<br> 1 * User Manual

• Oscilloscope multimeter 2 in 1, improve your work efficiency.
• One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display.
• 240*320 high definition color screen: the color display is clearer, and the secondary display at the bottom provides more function menus.
• Multimeter measurement functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.
• Triple safety: double insurance tube, 500mA/250V, 10A/250V. Input voltage is greater than 24V, beep warning once. Input over range, beep warning.
• KKmoon kkm828 High Definition Intelligent Graphical Digital Oscilloscope Multimeter 2 in 1 with 2.4 Inches Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate for DIY and Electronic Test
