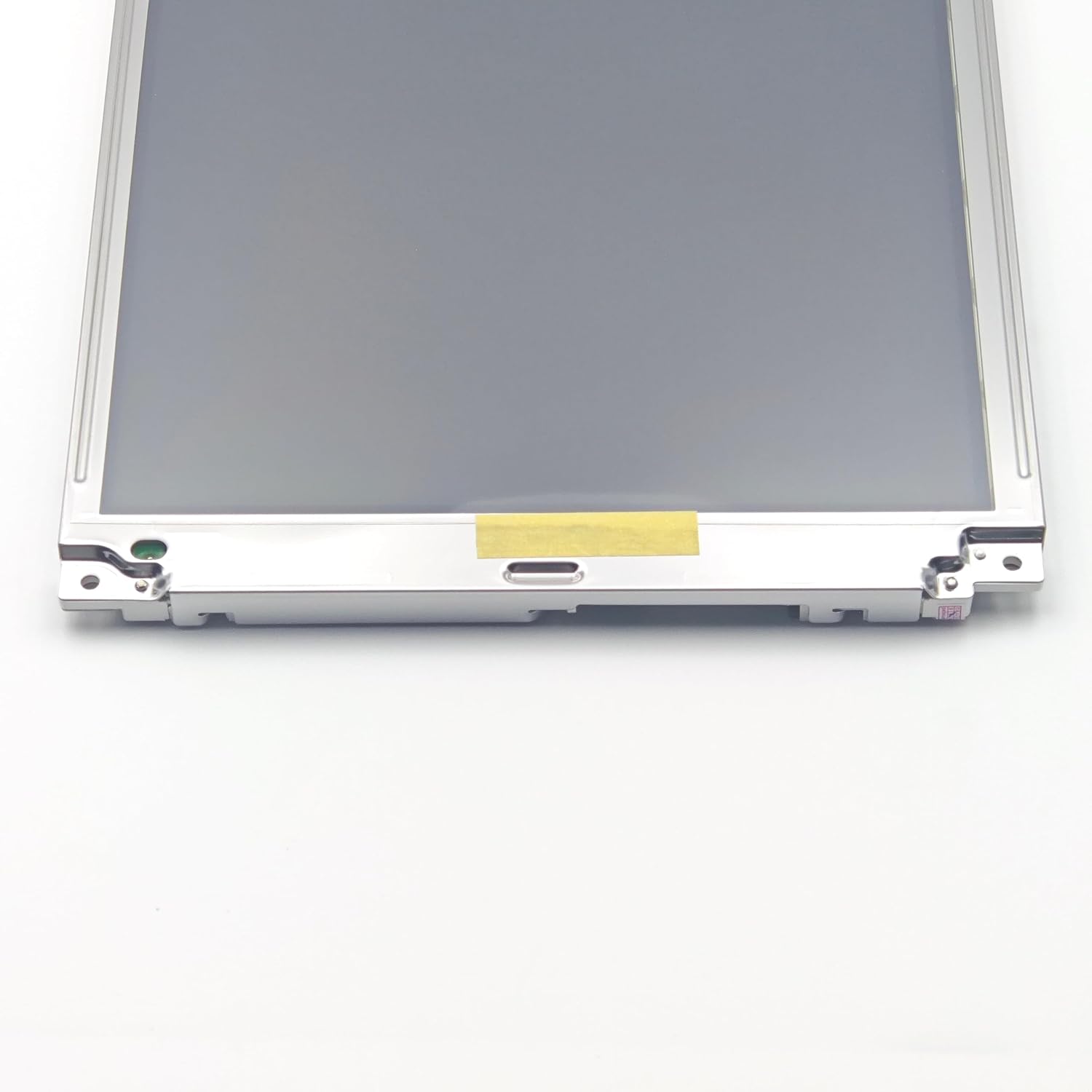

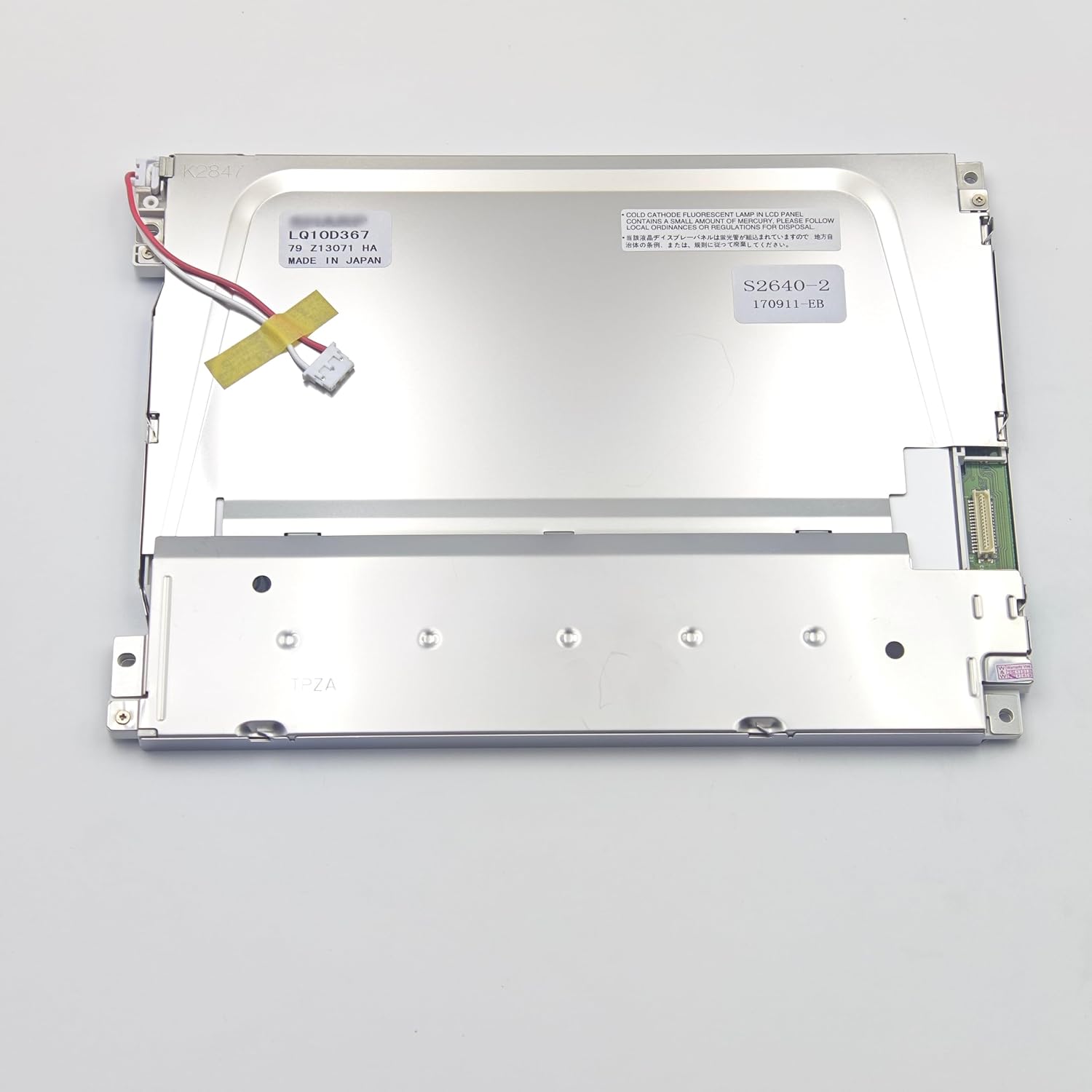

LQ10D367 10.4 inch LCD Panel Replacement – 640×480 VGA 4:3 a-Si TFT-LMP for Industrial Machine, CCFL Backlight, Embedded Display (No Touch, No Driver Board)

10.4 inch LQ10D367 LCD Panel 640×480 a-Si TFT-LCD LQ10D367 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246.5(W)×179.4(H)×11(D) mm, viewing area size of 216.2(W)×163.4(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (3H), Antireflection, net weight of 625g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ10D367 can provides 200 cd/m² display brightness 100:1 transimissive contrast ratio, 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/40 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 25K hours, external backlight driver is additionally needed. LQ10D367 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 5.0V (Typ.).

• Exact Replacement for LQ10D367 – Compatible with industrial machines, medical equipment, and old embedded systems requiring 10.4" a-Si TFT-LCD.
• 640×480 (VGA) Resolution – 4:3 aspect ratio, ideal for legacy industrial interfaces and monitoring equipment.
• CCFL Backlight (No Driver Included) – Original CCFL design; requires external backlight driver (not included).
• Sturdy Outline Dimensions – 246.5mm (H) × 179.4mm (V) × 11mm (D), fits standard 10.4" mounting holes.
• Operating & Storage Temperature – 0~50°C (working) / -25~70°C (storage); contrast ratio 100:1 (min).
