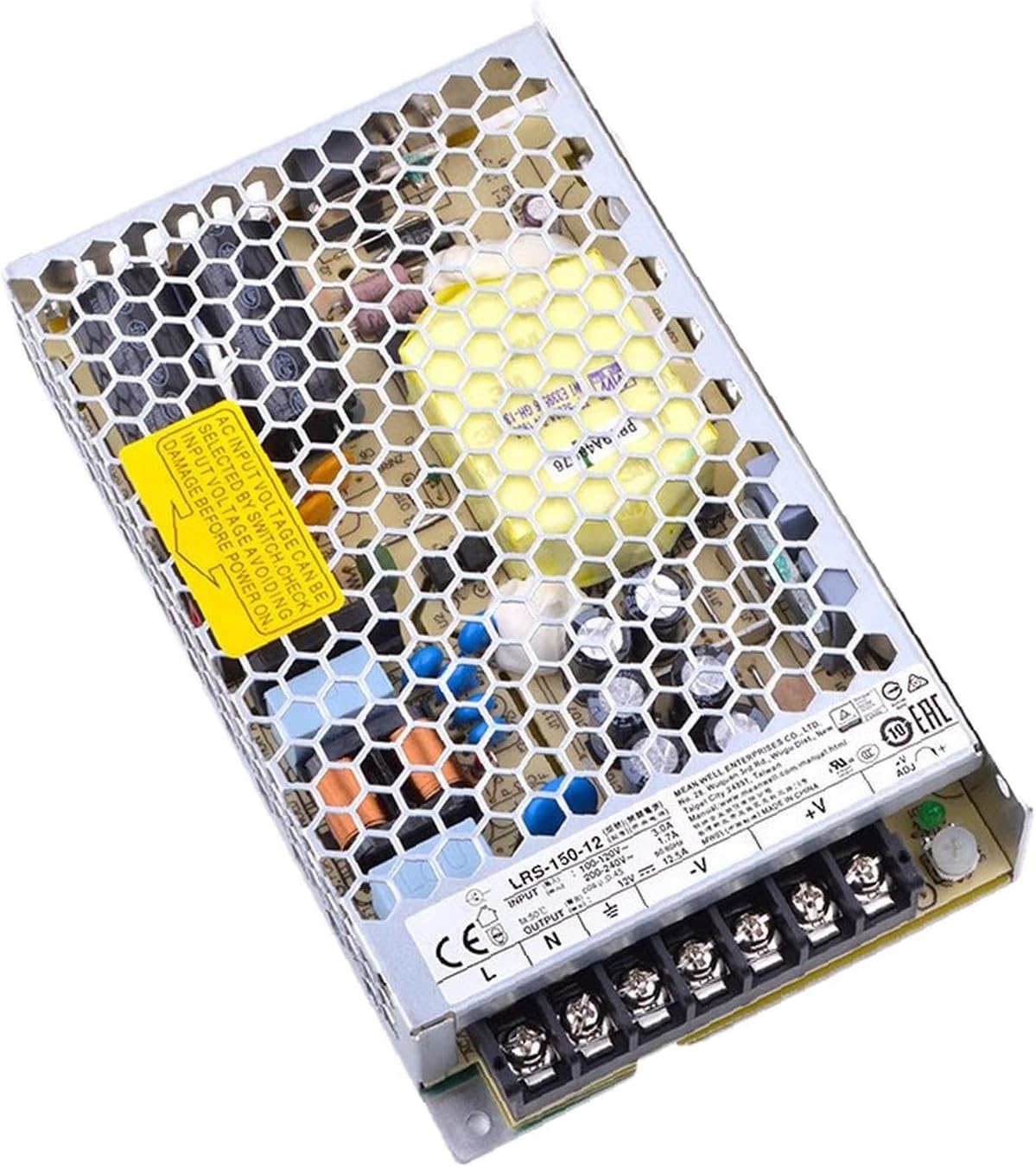

LRS-150-12 12V 12.5A 150W Industrial Power Supply, 85-264VAC Input with Overload Protection for Automation, Control Systems & Electronic Equipment

The LRS-150-12 switching power supply provides 150W continuous output (12V DC/12.5A) with 87.5% efficiency, designed for industrial automation, machinery controls, and electronic instruments. Its universal 85-264VAC input (switch-selectable voltage range) and 240-370VDC compatibility ensure worldwide operation. The unit features comprehensive protection including auto-recovery overload (110-140% capacity), over-voltage shutdown, and thermal cutoff, backed by 4KVAC I/P-O/P isolation and 2KVAC I/P-FG protection. Constructed with a ventilated metal chassis, it operates reliably from -30°C to +70°C without forced cooling, supported by 5G vibration resistance and 2000m altitude certification. Safety certifications include UL62368-1, TUV EN62368-1, EN61558-1/-2-16, and GB4943.1, with Class B EMI compliance per EN55032/CISPR32. The 30mm low-profile design (159×97×30mm) integrates 100-240VAC terminal block input and screw-type output terminals, delivering 150W peak power while maintaining <0.75mA leakage current. Ideal for CNC machines, PLC systems, laboratory equipment, and commercial installations requiring robust 12V DC power with 2707K-hour MTBF reliability.

• High-Efficiency 150W Output: Delivers stable 12V DC/12.5A power with 87.5% efficiency, certified by UL62368-1, TUV EN62368-1, and GB4943.1 for industrial safety compliance. Universal 85-264VAC input with switch-selectable voltage ranges ensures global compatibility.
• Robust Protection System: Features automatic recovery from 110-140% overload conditions, over-voltage protection (4KVAC isolation), and thermal shutdown. Withstands 5G vibration and operates in -30°C to +70°C environments for extreme reliability.
• Industrial-Grade Durability: Metal mesh housing enhances heat dissipation without fans. Meets BS EN/EN61558 safety standards with 2000m altitude rating and 100MΩ insulation resistance (500VDC tested) for harsh industrial applications.
• Energy-Saving Design: Ultra-low 0.5W standby consumption complies with global energy regulations. 240-370VDC input capability and <0.75mA leakage current optimize performance in automated systems and IoT devices.
• Compact & Versatile Solution: 159×97×30mm slim profile fits space-constrained installations. Certified for industrial automation, control panels, test equipment, and commercial appliances with Class B EMI/EMC compliance.
