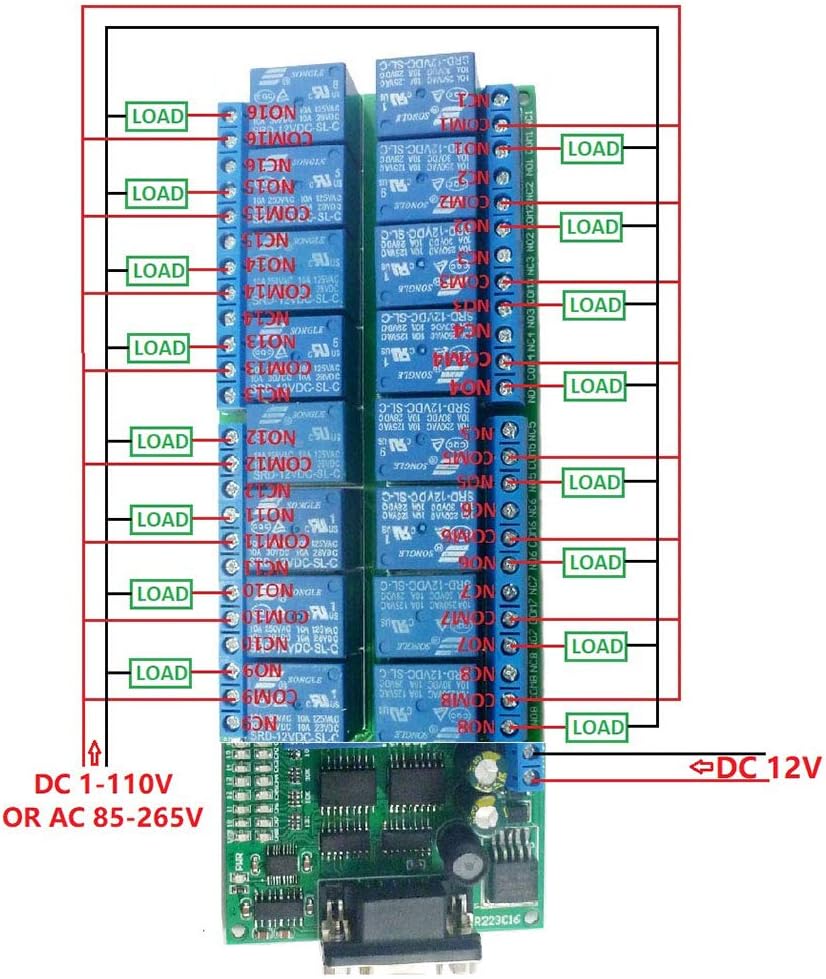

Taidacent 16 Channel Relay Board RS232 Relay Module DB9 Female Interface Serial Remote Control Switch R223C16 Intelligent 12 volt 9999S Delay Relay for Smart Home Application
Product details
| Management number | 246985000 | Release Date | 2026/08/16 | List Price | US$11.34 | Model Number | 246985000 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, DC 12V power supply (voltage range 9-13V) 2, Standby current 18MA. 3, RS232 DB9 female interface 4, open, close, jog, self-lock, interlock, delay, all open, all close 8 working modes (8-byte instruction no delay mode) 5, two kinds of instructions: AT instruction and 8-byte instruction, two kinds of instructions are recognized automatically, no need to switch. 6, the maximum delay under the AT command is 9999 seconds 7, size: 172 * 65 * 19 8, Weight: 228g 9, Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
- DC 12V power supply (voltage range 9-13V)
- Standby current 18MA
- RS232 DB9 female interface
- open, close, jog, self-lock, interlock, delay, all open, all close 8 working modes (8-byte instruction no delay mode)
- two kinds of instructions: AT instruction and 8-byte instruction, two kinds of instructions are recognized automatically, no need to switch.
| UPC | 795749939246 |
|---|---|
| ASIN | B085RLBH6Y |
| Brand Name | Taidacent |
| Coil Voltage | 12 volts |
| Contact Type | Normally Open |
| Manufacturer | ZC-R223C16relay-0311 |
| Current Rating | 10 A |
| Operation Mode | Automatic |
| Maximum Switching Current | 10 A |
| Maximum Switching Voltage | 12 volts |
