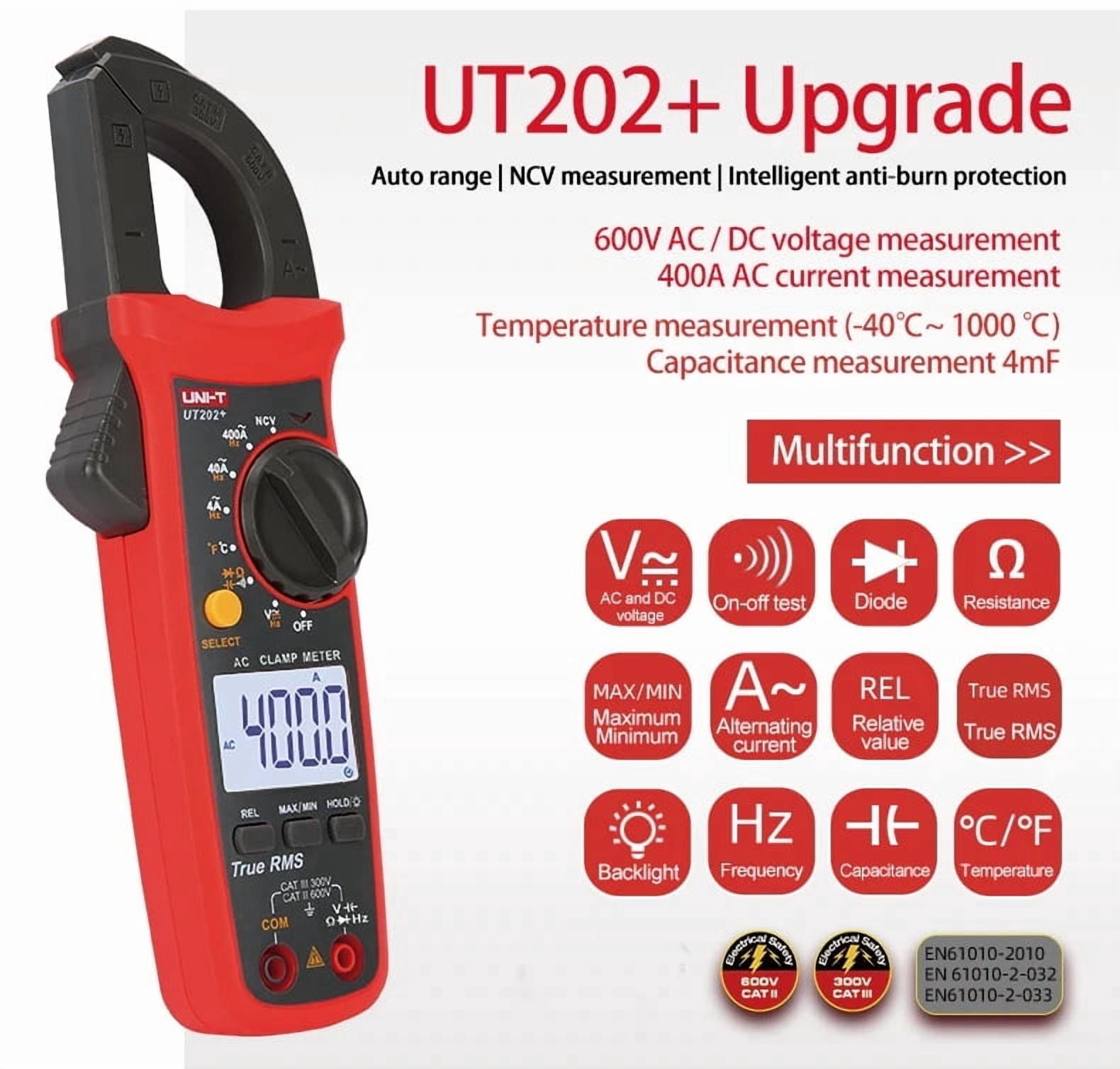

UNI-T 4000-Count Digital Clamp Multimeter UT202+ True RMS Clamp Meter 600V AC/DC Voltage,AC Current,NCV Capacitance Resistance Temperature Tester for Home Automotive DIY

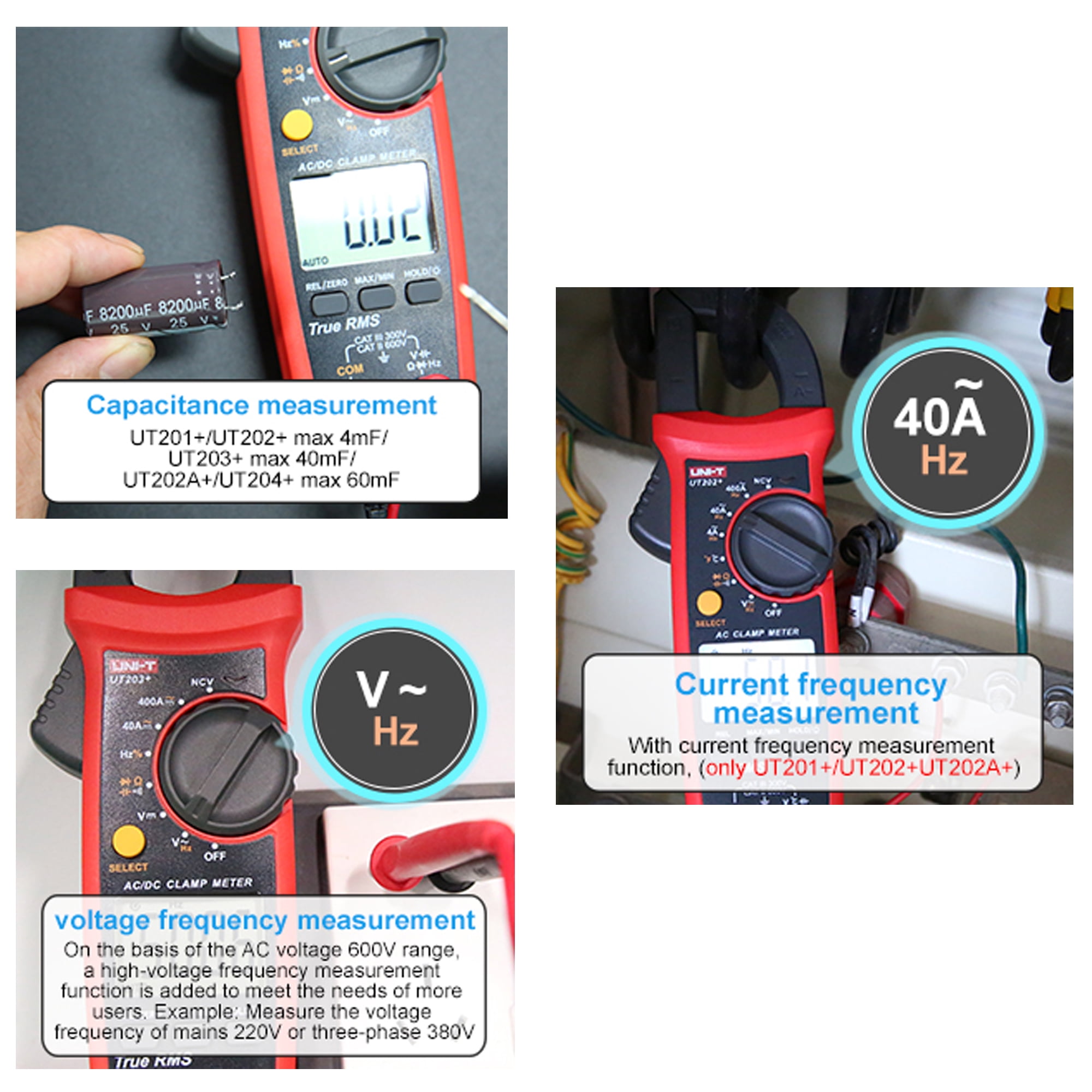

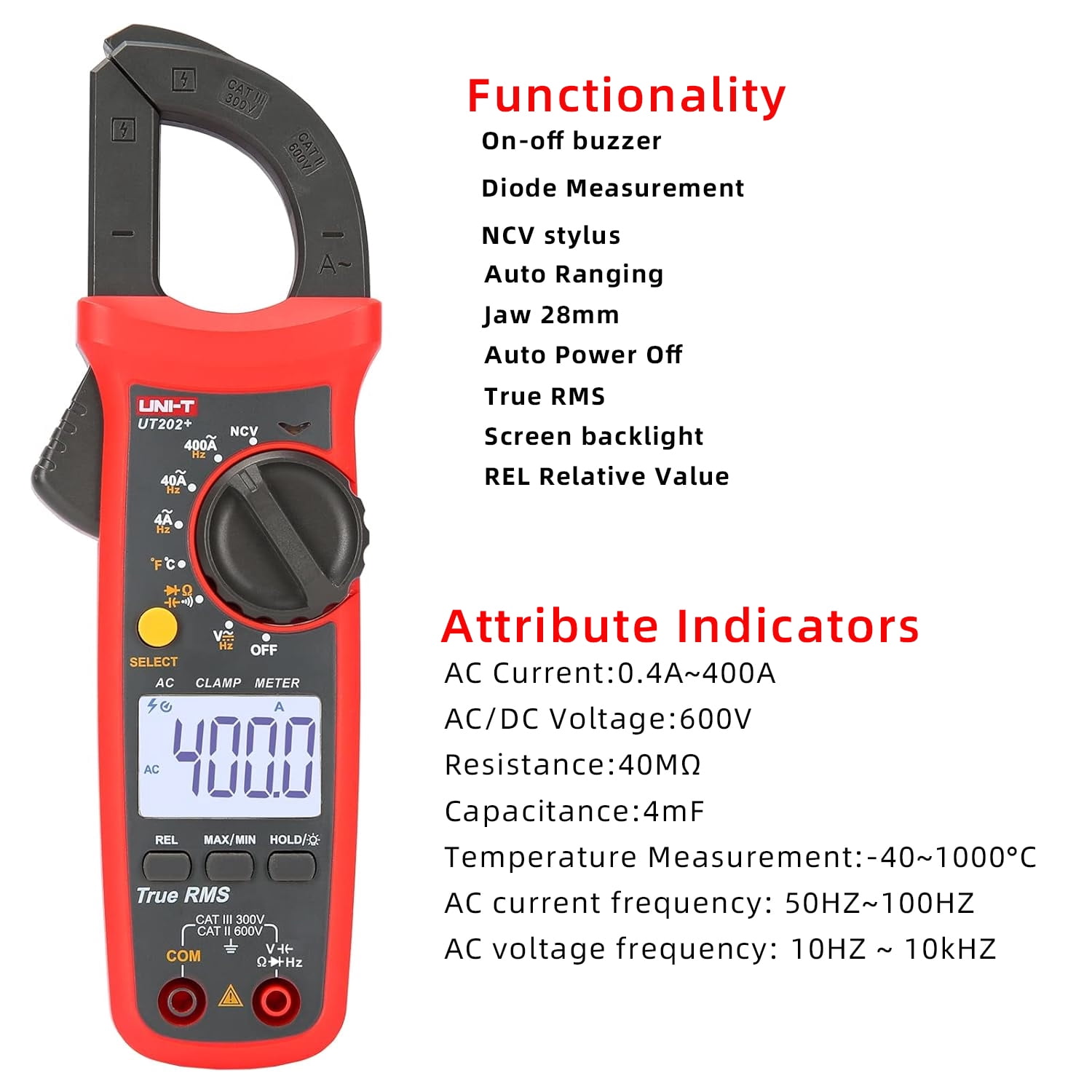

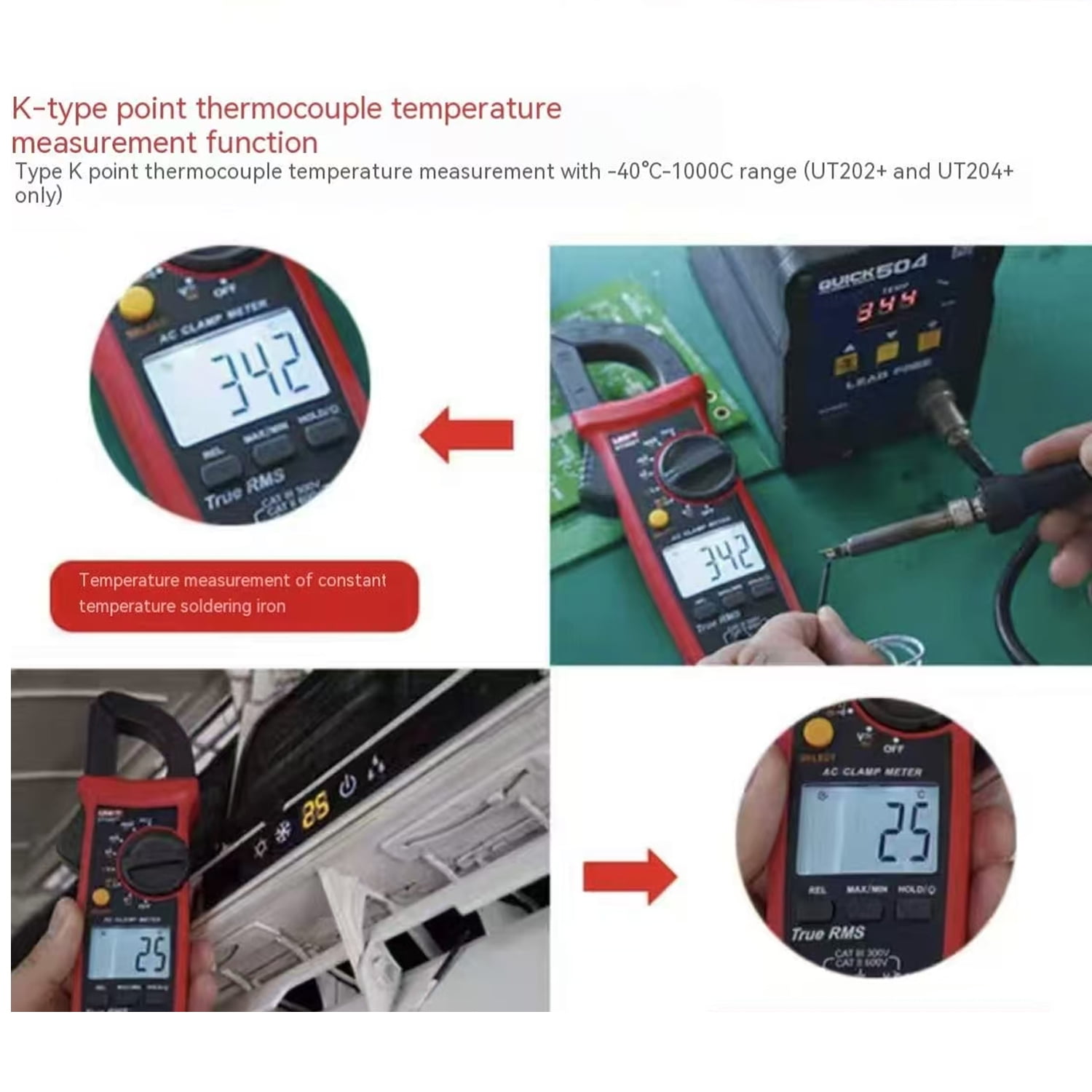

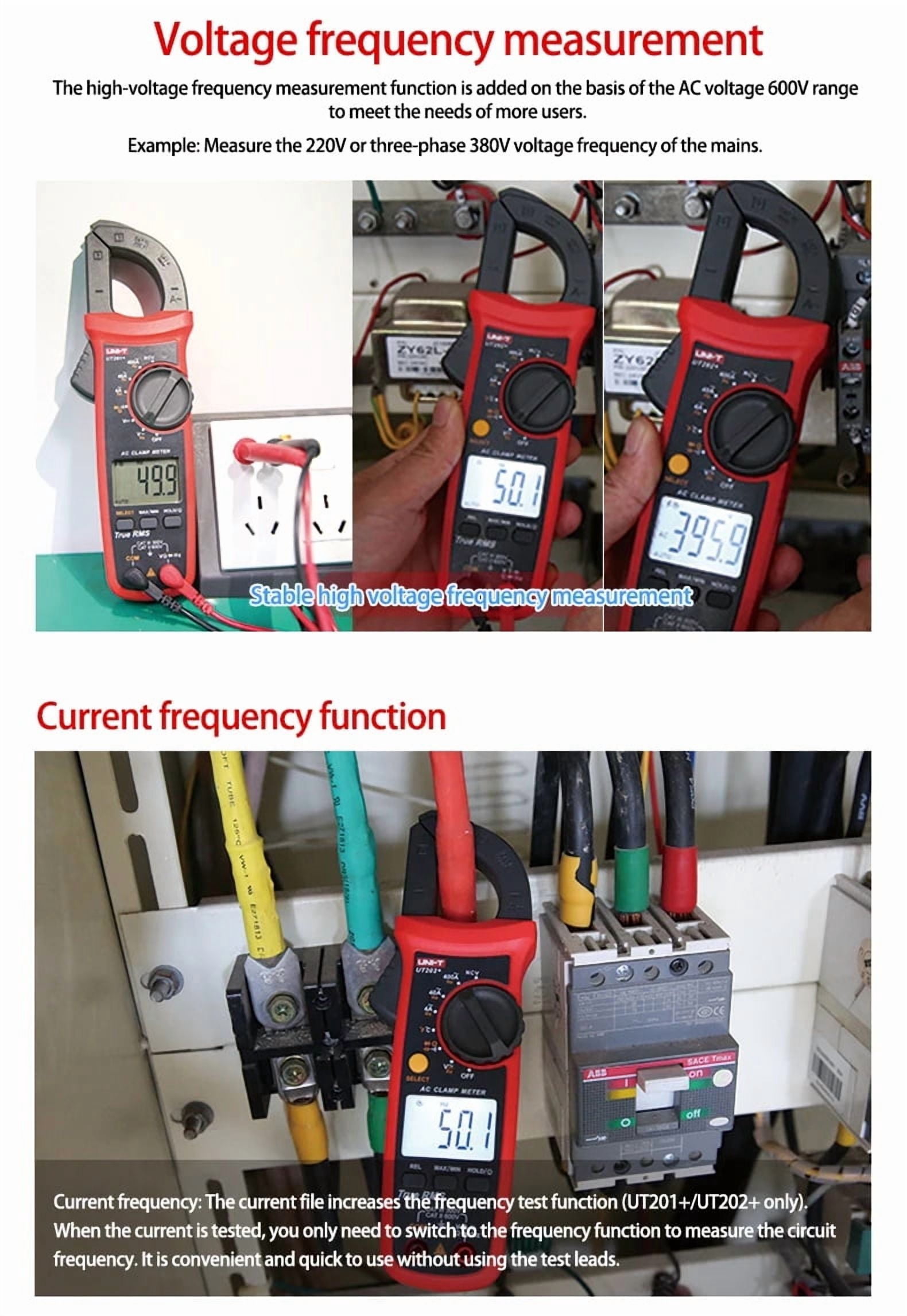

<p>The UNI-T Digital Clamp Multimeter UT202+ is a versatile and reliable handheld true RMS meter with a large LCD display and fast analog-to-digital converter. It offers full-featured mismeasurement protection, over-voltage and over-current alarm prompts, and can measure voltage up to 600V, high-voltage frequency, AC current, current frequency, and temperature. </p><p> </p><p>With its comfort grip design and 6-month warranty, this multimeter is an excellent choice for electronics and electrical engineering professionals who require accurate and secure measurements.</p><p> </p><p>Specification / Range / Accuracy</p><p> </p><p>AC Current (A) :4A/40A/400A ±(2%+10)</p><p> </p><p>AC Current Frequency (Hz) :50Hz~100Hz ±(1%+5)</p><p> </p><p>AC Voltage (V) :4V/40V/400V/600V ±(0.8%+5)</p><p> </p><p>AC Voltage Frequency (Hz) : 10Hz～10kHz ±(1%+5)</p><p> </p><p>DC Voltage (V): 400mV/4V/40V/400V/600V ±(0.5%+2)</p><p> </p><p>Resistance (Ω) : 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+2)</p><p> </p><p>Capacitance (F) : 4nF/40nF/400nF/4μF/40μF/400μF/4mF ±(4%+5)</p><p> </p><p>Temperature : -40℃~1000℃/-40℉~1832℉ ±(1.5%+5)</p><p> </p><p>Special Function</p><p> </p><p>Display digits: 4000</p><p> </p><p>Auto range: √</p><p> </p><p>Clamp head size: 28mm</p><p> </p><p>True RMS: √</p><p> </p><p>NCV: √</p><p> </p><p>On-off test: √</p><p> </p><p>Diode Test: √</p><p> </p><p>Maximum/Minimum Value: √</p><p> </p><p>Relative value: √</p><p> </p><p>Data Hold: √</p><p> </p><p>Low voltage indication: ≤2.5V</p><p> </p><p>Auto shutdown: 15 minutes</p><p> </p><p>Operating Temperature: 0℃~40</p><p> </p><p>Safety Class: CAT II 600V/CAT III 300V</p><p></p>

• Basic Functions: The clamp meter measures AC/DC voltage, AC voltage, resistance, capacitance, diodes, continuity, high-frequency voltage, and temperature. It features data hold, auto power-off, low battery alert, max/min values, relative readings, and backlight display to meet diverse user and application needs.
• Multi-Function Protection: The UT202+ 6000-count smart digital clamp meter incorporates full-function gear burnout protection, full-function misreading protection, and overvoltage/overcurrent alarms, ensuring enhanced safety, speed, accuracy, and flexibility. Designed to meet EN61010-2010 CAT II 600V/CAT III 300V safety standards.

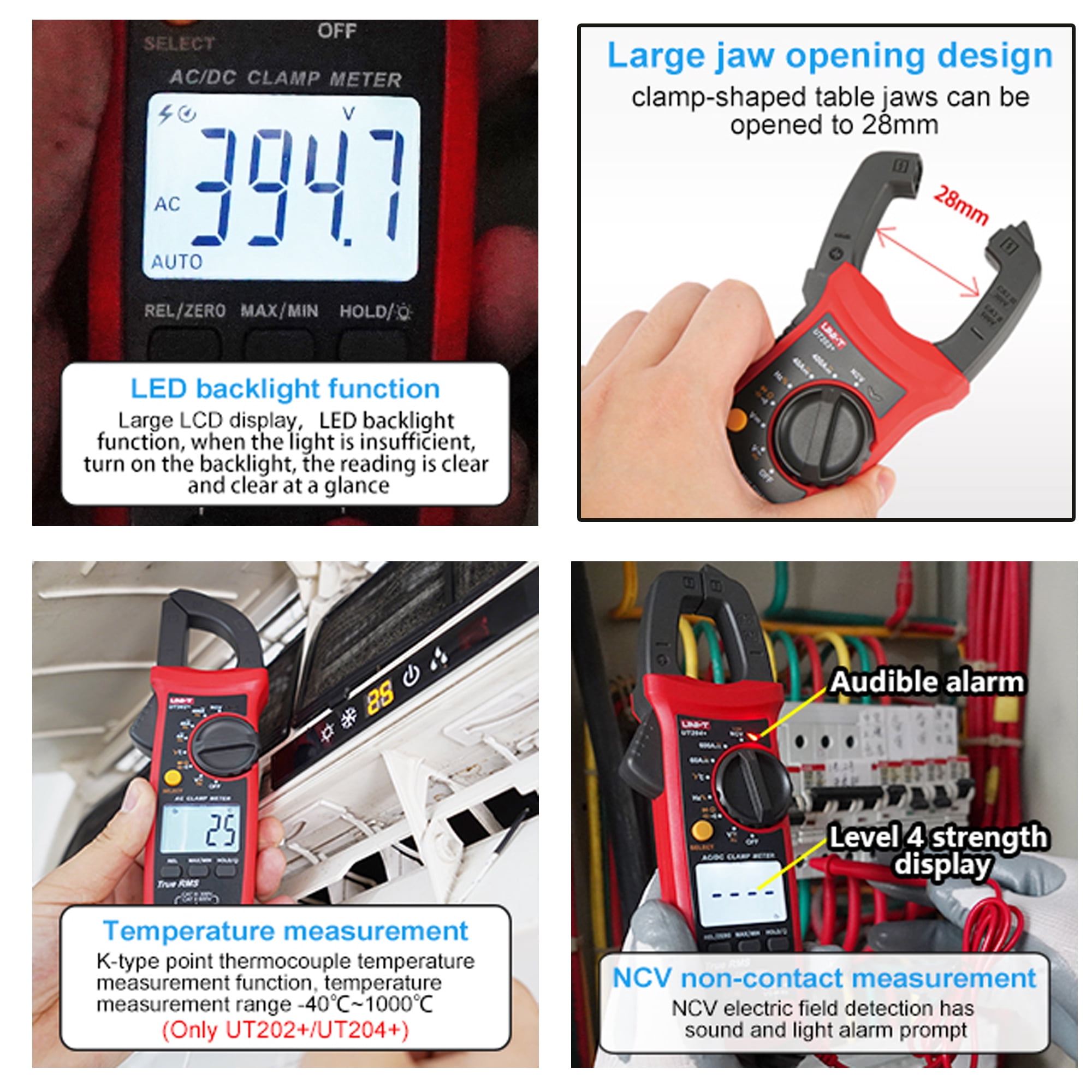

• NCV with Audible/Visual Alarms: Equipped with high-sensitivity non-contact voltage detection to identify wire continuity/breakage or verify terminal energization, featuring audible and visual alarms.

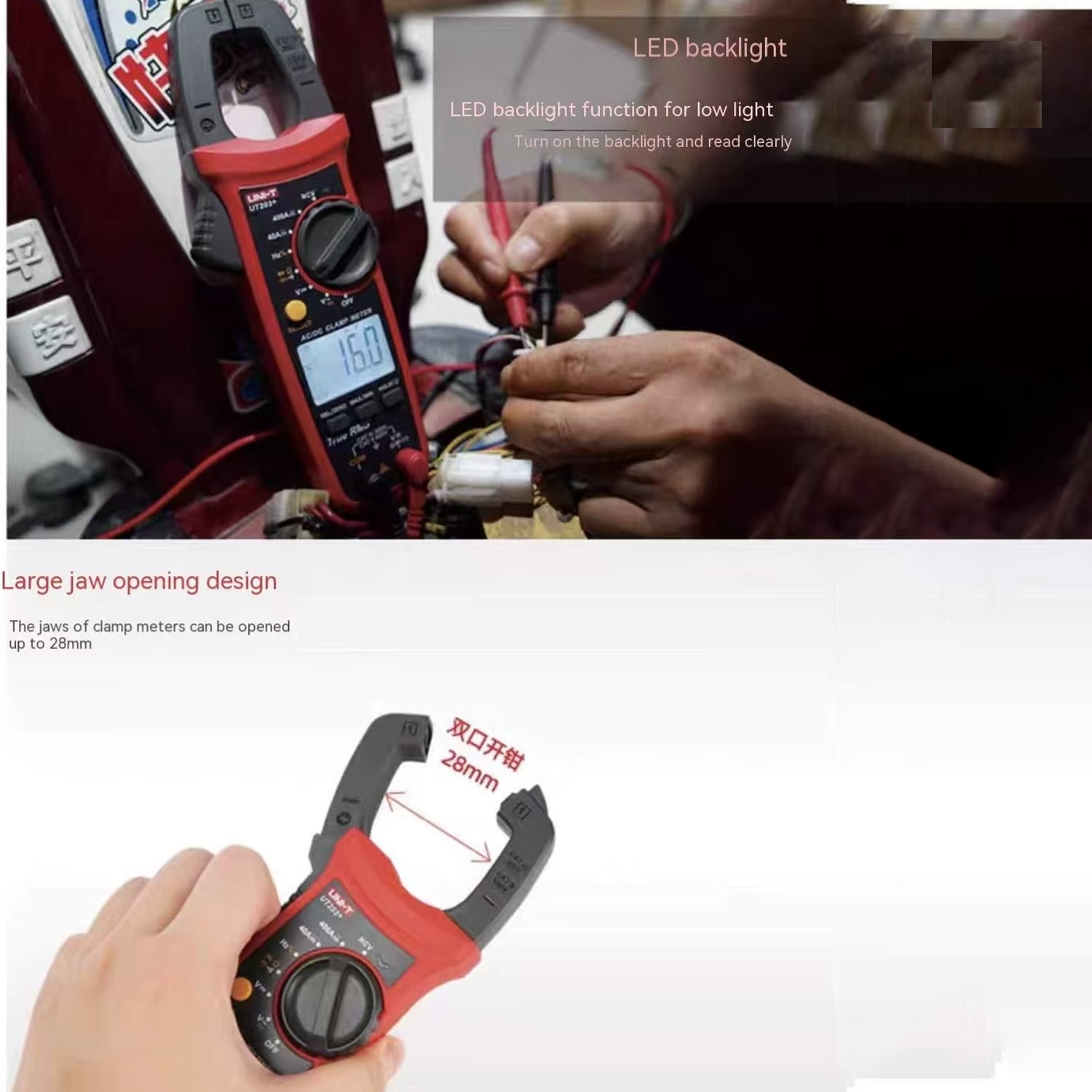

• LCD Backlight Display: High-definition brightness LCD ensures clear readability, with backlighting enabling effortless readings in low-light conditions.
• Convenient Operation: The 28mm jaw digital clamp meter features a side-opening design, enabling measurement of wires up to 1.1 inches in diameter without damaging circuits. Ideal for confined spaces, it is specifically engineered for wiring maintenance, circuit testing, and repair services in harsh electrical environments.
• Versatile Applications: This digital clamp meter is your reliable partner for household appliances, automotive repair, electrical power engineering, motorcycles, RVs, HVAC, electronic testing, electrical maintenance, laboratories, and industrial equipment maintenance. From battery testing to power plant maintenance and railway repairs, it meets your comprehensive measurement needs.

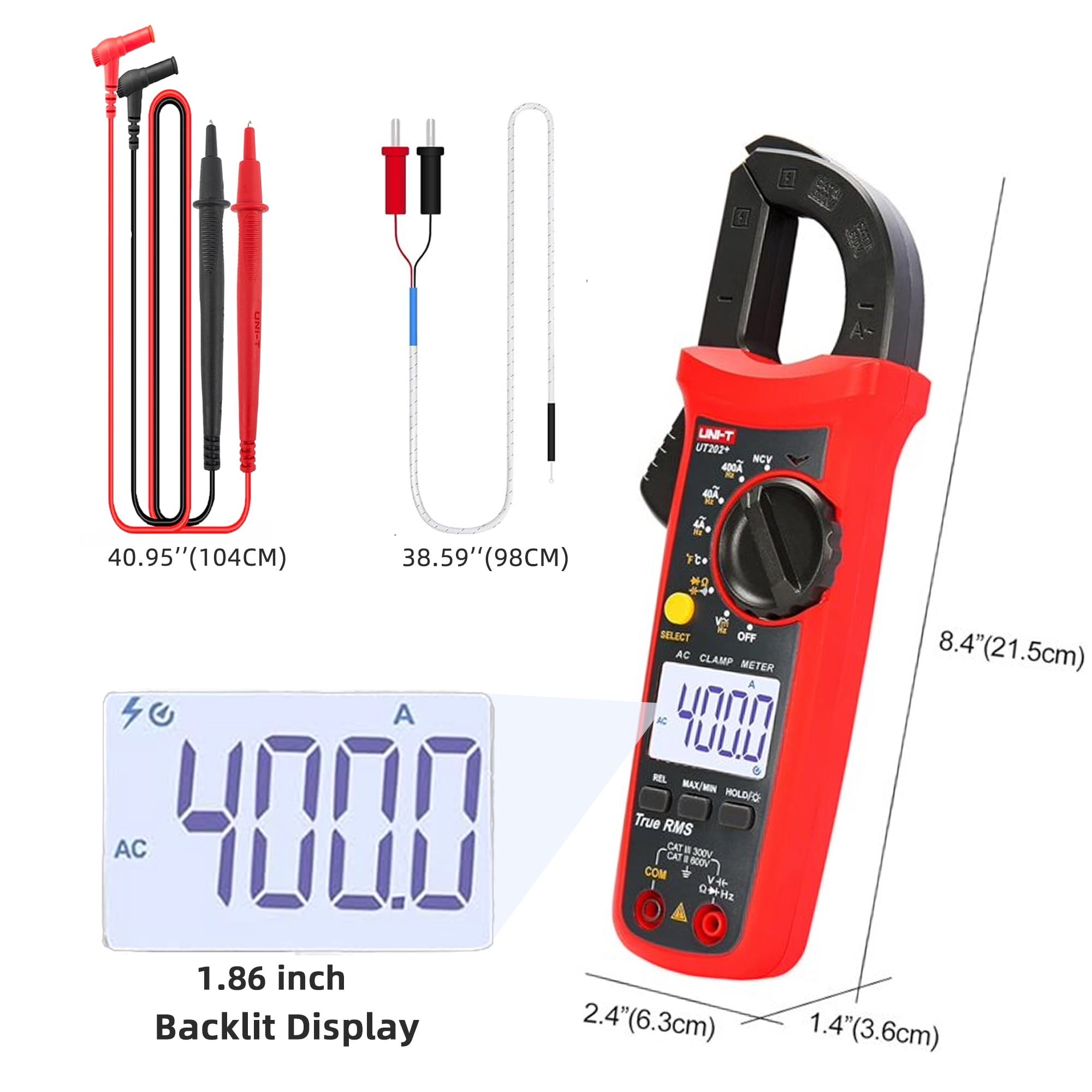

• Package Includes: 1* Digital Clamp Meter 2* Test Leads 2* Alligator Clips 1* Temperature Probe Pen 1* Carrying Case 2* AAA Batteries 1* English User Manual
