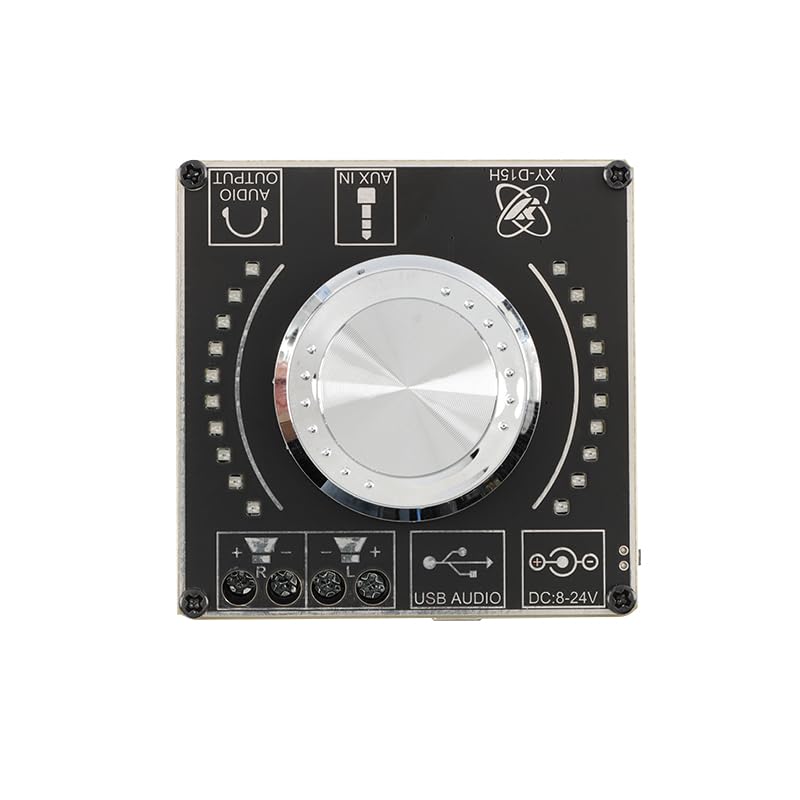

XY-D15H 10W-20W Stereo Blue Tooth Audio Amplifier Module 8-24V Input 20Hz-20kHz 90dB SNR - LED Spectrum Sync for DIY Projects
US$6.40
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by blog.charterlinkz.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$6.40
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by blog.charterlinkz.com
Free 30-day returns Details
Product details
| Management number | 247729896 | Release Date | 2026/08/16 | List Price | US$6.40 | Model Number | 247729896 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Wide Voltage & High Power】 : Input range 8 V to 24 V DC (±0.5 V tolerance); delivers 16 W×2 @12 V/4 Ω or 30 W×2 @24 V/8 Ω (heatsink required); stable output under 26 V absolute max; compatible with 12 V car batteries and 19 V laptop adapters for automotive or portable speaker projects
- 【Zero-Noise Audio & Bluetooth 5.0】 : 90 dB signal-to-noise ratio (A-weighted); 20 Hz–20 kHz frequency response (±3 dB); Bluetooth 5.0 pairing ID "XY-P15W" with 15 m line-of-sight range; anti-interference design minimizes Wi-Fi signal disruption for uninterrupted streaming in home theaters or outdoor setups .
- 【Real-Time LED Spectrum Sync】 : Dual-channel audio visualization; short LED CTRL pin to ground for VU meter mode; floating pin activates dynamic rhythm lights; auto-syncs with bass/treble frequencies for immersive party lighting or visual fedback in DIY music installations .
- 【Rugged Protection & Cooling】 : Self-recovery over-temperature cutoff at >85°C; reverse polarity and short-circuit safeguards; 2 oz copper PCB with thermal relief pads; operate reliably from -25°C to +85°C; add heatsink for sustained >20 W output to prevent thermal throttling in enclosed enclosures .

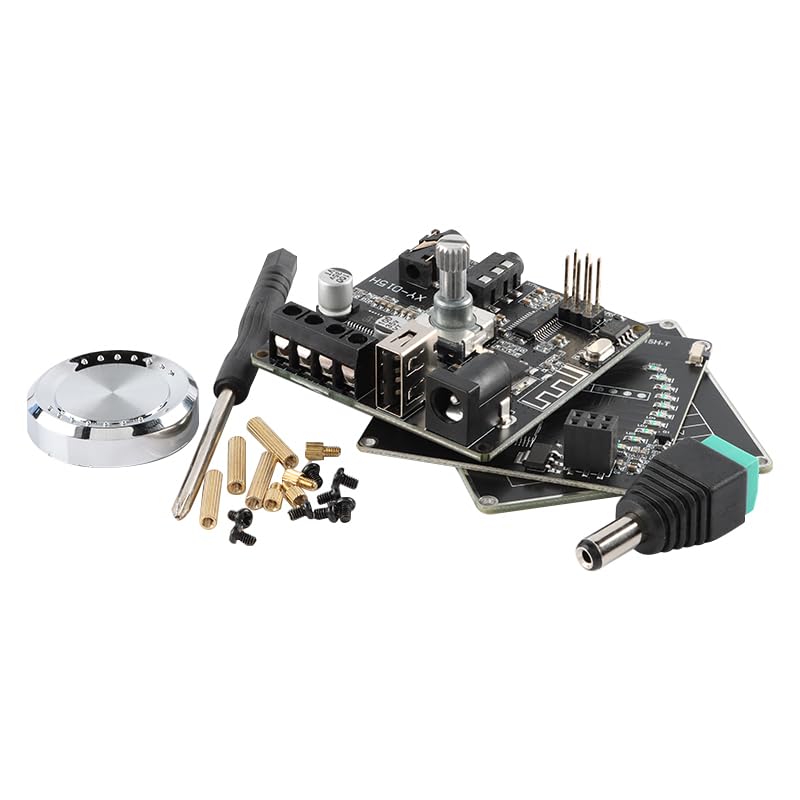

- 【Plug-and-Play Integration】 : Pre-soldered terminals for L+/L-/R+/R- speaker outputs; shielded cable routing reduces static noise (add 100 μF capacitor if needed); SPI-compatible control interface; compatible with Arduino PWM audio libraries; seamless integration into smart speakers or IoT audio hubs .
| ASIN | B0FMRM4XPQ |
|---|---|
| Model | XY-D15H |
| Brand Name | MusRock |
| Unit Count | 1 Count |
| Part Number | XY-D15H Audio Amplifier Module |
| Manufacturer | MusRock |
| Output Power | 30 watts |
| Number of Items | 1 |
| Number of Channels | 2 |
| Included Components | XY-D15H Audio Amplifier Module |
| Maximum Output Power | 60W |
| Maximum Supply Voltage | 24 volts_of_direct_current |
| Minimum Supply Voltage | 8 volts_of_direct_current |
